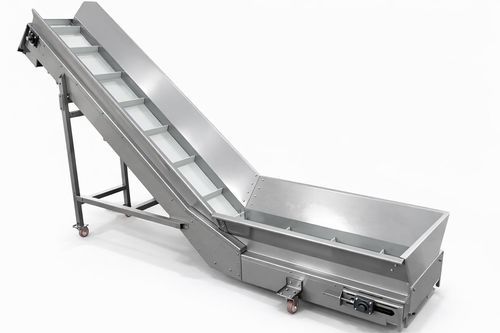

Modular conveyor belt AQ-P series

smoothstainless steelPVC

Product description
Designed to deliver maximum hygiene, durability and reliability in production processes. The modular structure, Plug & Play system and variable speed drive ensure operational flexibility, simplified maintenance and high performance across a wide range of industrial applications.

Specifications
Centre Distance:
• up to 250 m with belt widths of 400 / 600 / 800 / 1000 mm
• up to 25/30 m with a belt width of 2400 mm

Belt Width (mm)

• 400
• 600
• 800
• 1000
• 1200
• 1400
• 1600
• 2000

Drum Diameter (mm)

• 100
• 120
• 140
• 160

Belt Model

• AQ-P
• AQ-PL
• AQ-PSP

Handled material
Food products, wine industry

Types

• For the Food Industry: Ensures hygiene, reliability and maximum versatility. The modular structure and rigid plastic belt suitable for food contact provide long service life, reduced maintenance and efficient conveying for every type of food product.
• AQ-PL/D Double Incline: Designed for conveying materials across different height levels, offering efficiency, reliability and maximum operational flexibility. The modular structure, rigid PVC belt and integrated safety systems ensure simplified maintenance, optimized energy consumption and high performance.
• AQ-PSP Chevron Belt: Ensures excellent grip and stability when conveying different types of materials. Durable, versatile and customizable, it provides long service life, reduced maintenance and reliable performance even in the most demanding industrial environments.
• AQ-P Smooth Belt: Designed to ensure continuous and efficient conveying over long production lines. The smooth surface, reinforced structure and high-strength materials provide reliability, easy cleaning and reduced maintenance.
• AQ-PL Cleated Belt: Designed for the safe conveying of both light and heavy materials. The durable belt base and transverse cleats ensure excellent traction, load stability and smooth conveying even in the most demanding applications.

Technical specifications

• Model / series: AQ series (AQ-P, AQ-PL, AQ-PSP)
• Belt widths (mm): 400, 600, 800, 1000, 1200, 1400, 1600, 2000
• Drum diameters (mm): 100, 120, 140, 160
• Centre distance: up to 250 m (for widths 400/600/800/1000 mm); up to 25–30 m (for 2400 mm width)
• Designed for: food products, wine industry (hygienic applications)
• Available belt types: Smooth (AQ-P), Double Incline (AQ-PL/D), Chevron (AQ-PSP), Cleated (AQ-PL)
