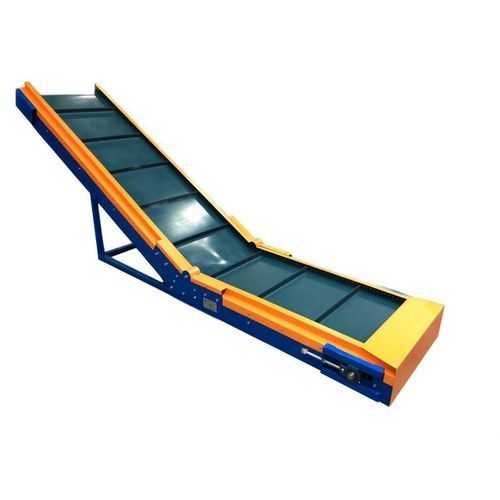

Scraper conveyor AQ series

modular beltlow-profile beltinclined

Overview
Modular PVC/PU belt conveyors designed for versatile industrial conveying. The AQ series features a Plug & Play modular chassis for fast installation, simple maintenance and flexible integration into production lines.

Key Features

• Bordaflex sidewalls and containment skirts for lateral retention.
• Geared motor with mechanical variable-speed drive.
• Non-magnetic AISI 304 stainless steel sections available for sensitive applications.
• PVC belt scraper for belt cleaning and reduced maintenance.
• Modular design and low-profile options to adapt to layout constraints.
• Available belt types: smooth, cleated, chevron and honeycomb.

Specifications (summary)
Centre distance: up to 250 m (for 400–1000 mm widths); up to 25–30 m (for 2400 mm width). Belt widths (mm): 400, 600, 800, 1000, 1200, 1400, 1600, 2000, 2400. Drum diameters (mm): 100, 120, 140, 160. Belt models: AQ-P / AQ-PL / AQ-PSP.

Handled Materials

• Plastics
• Wood
• Paper / Cardboard
• Cork
• Compost
• Tyres
• Aluminium / Cans
• Steel industry materials
• Food products (food-grade versions)
• Pellets

Available Types and Applications

• AQ-PL/D Double Incline: for efficient conveying across different height levels; modular, energy-efficient and with integrated safety features for industrial use.
• AQ-PSP Chevron Belt: high grip and stability for bulk, packaged or heavy materials; customizable for demanding applications.
• AQ-P Smooth Belt: continuous conveying over long distances with low maintenance and wear-resistant materials.
• AQ-PL Cleated Belt: transverse cleats for controlled transport of light to heavy items on inclines.
• Food-grade versions: belts and components certified for food contact, easy to clean and compliant with hygiene requirements.
• Honeycomb Belt: lightweight, stable structure suited for logistics, food processing and automation lines.

Technical specifications

• Centre distance and belt-width combinations as above.
• Options: Bordaflex sidewalls, containment skirts, PVC belt scraper, geared motor with mechanical variable-speed drive, non-magnetic AISI 304 sections.
• Modular chassis allows special configurations: low-profile, double incline, chevron, cleated, honeycomb.
