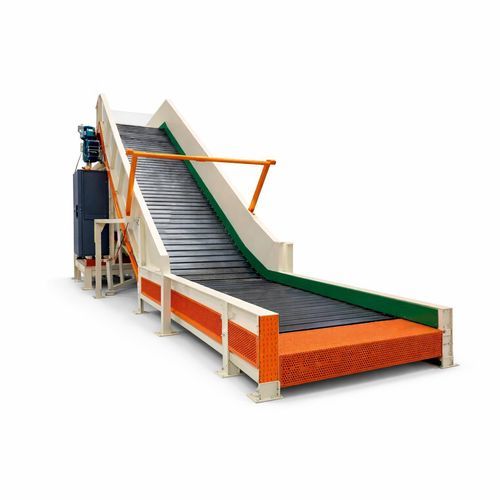

Chain conveyor AQ series

verticalinclinedfor materials handling

Overview
Steel slat conveyors designed for conveying bulky and heavy materials in industrial environments. Reinforced structure and removable steel framework facilitate maintenance while providing continuous operation in demanding applications.

Specifications
Centre distance: up to 140 m (for conveyor widths 400–1400 mm); up to 75 m (for conveyor width 2200 mm)
Chain pitch (mm): 75, 125, 160, 200, 250, 300
Conveyor widths (mm): 400, 600, 800, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2200
Model series: AQ-T / AQ-TG / AQ-TV / AQ-TP

Flight Type / Strength Class
Flight Type | Strength Class
Steel Flights | PS100
Stainless Steel Flights | PS125
Rubber-Coated Flights | PS200

Handled Materials

• Plastics
• Wood
• Paper / Cardboard
• MSW (Municipal Solid Waste)
• Aluminium / Cans
• Tyres
• Steel industry materials
• Multi-material

Types and Typical Applications

• AQ-T Steel: Continuous conveying of heavy materials and high-temperature applications across various industrial processes.
• AQ-TV Vertical: For elevating large volumes where footprint is limited; suitable for steep inclines (over 70°) to reach significant heights.
• AQ-TG Rubber-Coated: Sealed conveying with high-resistance rubber lining for protection and continuous, safe operation.
• AQ-TP Heavy-Duty: Heavy-duty version for very high load capacities and extremely robust use in paper mills, steel plants, cement works and similar industries.

Main Components and Features

• Chain and sprockets
• Chain guide rails
• Rubber lining options (rubber-coated flights)
• Material containment guides
• Flights and impact-resistant support bed
• Electric motor with right-angle gear reducer
• Hydraulic lubrication unit

Technical specifications

• Centre distance: up to 140 m (for widths 400–1400 mm); up to 75 m (for width 2200 mm)
• Chain pitch (mm): 75, 125, 160, 200, 250, 300
• Conveyor widths (mm): 400, 600, 800, 1000, 1200, 1400, 1500, 1600, 1800, 2000, 2200
• Models / series: AQ-T, AQ-TG, AQ-TV, AQ-TP
• Flight types and strength classes: Steel Flights (PS100); Stainless Steel Flights (PS125); Rubber-Coated Flights (PS200)
• Suitable materials: plastics, wood, paper/cardboard, MSW, aluminium/cans, tyres, steel industry materials, multi-material
• Key options: rubber lining, containment guides, chain/sprocket selection, lubrication unit, right-angle gear reducer motor
