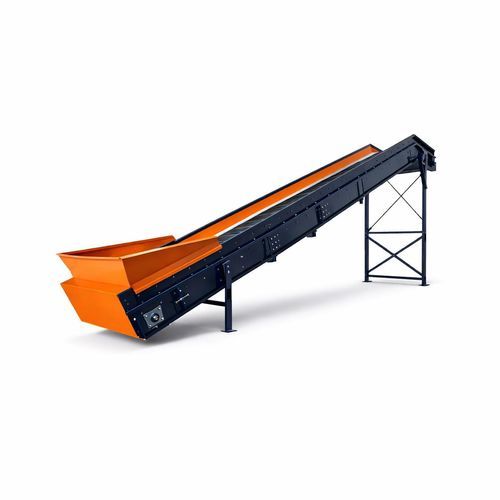

Modular conveyor belt AQ series

continuoussmoothcurved

Overview
Designed to ensure efficient and reliable material conveying in industrial environments. The modular frame allows quick length adjustment to match operational requirements, while the easily removable bolted assembly reduces maintenance time. Drive units from 0.75 to 30 kW deliver required performance with optimized energy use. The Plug & Play system simplifies installation and commissioning, making the conveyor practical, flexible and suitable for a wide range of applications.

Specifications
Centre Distance

• up to 250 m with belt widths of 400 / 600 / 800 / 1000 mm
• up to 25/30 m with a belt width of 2400 mm

Belt Width (mm)

• 400
• 600
• 800
• 1000
• 1200
• 1400
• 1600
• 2000
• 2400

Drum Diameter (mm)

• 220
• 240
• 260
• 300
• 320
• 340
• 360

Belt Model

• AQ-G / AQ-GL / AQ-GSP

Handled Material

• Plastics
• Glass
• Paper / Cardboard
• Municipal Solid Waste (MSW)
• Compost
• Tyres
• Aggregates / Construction materials
• Aluminium / Cans
• Steel industry materials
• Sand
• Clay
• Wood

Types

• AQ-GSP Chevron Belt: Provides excellent traction and wear resistance for reliable conveying of bulk materials in demanding applications. Versatile and easy to maintain.
• AQ-G Smooth Belt: Ensures smooth conveyance with good wear characteristics and reduced maintenance; modular frame and integrated safety features.
• AQ-GL Cleated Belt: Designed for stable conveying of heavy and light materials; transverse cleats and high-grip surface reduce slippage.
• AQ-GL/D Double Incline: Intended for recovery and efficient conveying from low-base machines; suitable for steep inclines.
• AQ-GSP/E for Construction: Adapted for construction sites, weather-resistant and easy to maintain with integrated safety systems.
• AQ-GL/DA: Double-incline rubber belt with upper curve to optimise material handling in complex layouts.

Main Components & Features

• Material containment skirts
• Geared motor (drive units 0.75 – 30 kW)
• Adjustable belt scraper
• Return rollers
• Rotating brush
• Non-magnetic AISI 304 stainless steel sections
• Modular frame allowing quick length adjustment
• Easily removable bolted assembly to minimise maintenance time
• Plug & Play installation and commissioning

Technical specifications

• Drive unit power range: 0.75 to 30 kW
• Modular frame for quick length adjustment
• Bolted removable assembly for reduced maintenance time
• Centre distances: up to 250 m (for widths 400–1000 mm); up to 25/30 m (for 2400 mm width)
• Belt widths available: 400, 600, 800, 1000, 1200, 1400, 1600, 2000, 2400 mm
• Drum diameters available: 220, 240, 260, 300, 320, 340, 360 mm
• Belt models/series: AQ-G, AQ-GL, AQ-GSP
• Suitable materials: plastics, glass, paper/cardboard, MSW, compost, tyres, aggregates, aluminium/cans, steel materials, sand, clay, wood
• Available accessories: containment skirts, scrapers, rollers, rotating brush, non-magnetic sections
