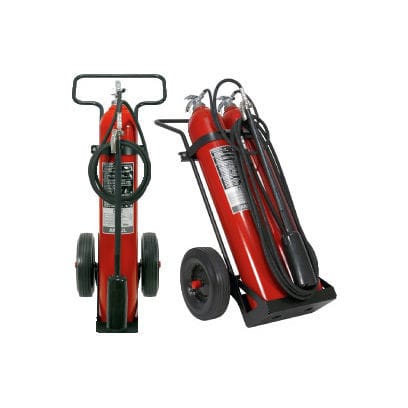

Gas (CO2) fire extinguisher SENTRY®

wheeledclass BClass C

Product Summary
SENTRY carbon dioxide wheeled fire extinguishers protect against Class B (flammable liquids and gases) and Class C (energized electrical equipment) fires. Designed for indoor use where wind or air movement will not affect discharge or where a clean, residue-free suppressing agent is required. Typical applications include aviation hangars, paint spray booths, quench tanks and metal tube manufacturing facilities.

Features

• Available in 50 lb (23 kg) and 100 lb (45 kg) models
• Designed for single-person operation
• Complies with ANSI/UL 154 and 711, ULC S503; meets DOT and TC requirements and NFPA 10
• 16 in (406 mm) rubber wheels for enhanced mobility

Benefits

• Non-corrosive, non-conductive agent that leaves no residue; CO2 is self-pressurizing and penetrates the hazard for effective suppression

Technical Resources (documents available)

• ANSUL Quick Reference Guide: Portable Fire Extinguishers and the American Disabilities Act (ADA) — Brochure
• SENTRY CD-50-D-1 and CD-100-D-1 Carbon Dioxide Wheeled Extinguishers Data/Specifications Sheet (Rev. 06) — Datasheet

Technical Specifications

• Agent: Carbon dioxide (CO2)
• Intended fire classes: Class B and Class C
• Type/Mounting: Wheeled unit for portability
• Available capacities: 50 lb (23 kg) and 100 lb (45 kg)
• Operation: Designed for one-person operation
• Wheels: 16 in (406 mm) rubber wheels
• Standards & compliance: ANSI/UL 154 and 711, ULC S503, DOT and TC requirements, NFPA 10
• Suitable environments: Indoor use where wind/air movement will not affect discharge; examples include aviation hangars, paint spray booths, quench tanks, metal tube manufacturing
• Performance notes: CO2 self-pressurized, non-corrosive, non-conductive, leaves no residue
• Referenced model numbers: CD-50-D-1, CD-100-D-1
