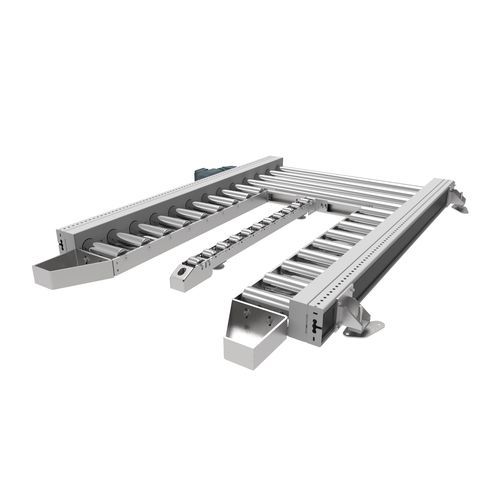

Roller conveyor "E" SHAPE
electric drivefor the food industryfor the wood industry

roller conveyor
roller conveyor
Add to favorites
Compare this product


Characteristics

Technology
roller
Drive mechanism
electric drive
Sector
for the food industry, for the pharmaceutical industry, for the automotive industry, for assembly lines, for the wood industry, for logistics
Transported product
for pallets
Form
horizontal
Other characteristics
for transport, modular, handling
Maximum load

1,500 kg (3,306.934 lb)

Speed

0.2 mm/min (0 in/s)

Effective width

Min.: 930 mm (37 in)

Max.: 1,330 mm (52 in)

Description

PALLET HANDLING ROLLER CONVEYOR "E" SHAPE Side Frame        Reinforced double formed 3 mm S235JR frame, powder coated RAL 9006. Conveyor Rollers        Ø 89 mm x 3mm roller, zinc plated finish.        Ø 76 mm x 3 mm roller, zinc plated finish.        Roller lengths 930 mm, 1130 mm, 1330 mm.        Pallet guide-rings, on specification. Roller Pitch        150mm and 175mm. Maximum Load        1500kg pallet. Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Conveyor Speed        12 m/min / 39.37 ft/min. Load Travel Direction        Bidirectional. Conveyor Supports        Included. Operating Temp.        5°C to 50°C / 41°F to 122°F.
