Chain conveyor
horizontaltransporthandling

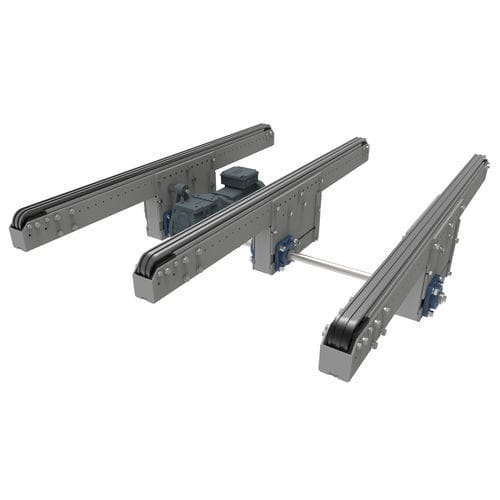

Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 2
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 3
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 4
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 5
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 6
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 7
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 8
Chain conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 9
Add to favorites
Compare this product

Characteristics

Technology
chain
Form
horizontal
Function
transport, handling
Construction
modular
Drive mechanism
electric drive
Transported product
for pallet
Sector
for the food industry, for the pharmaceutical industry, for the automotive industry, for assembly lines
Maximum load

Min.: 1,500 kg
(3,306.934 lb)

Max.: 7,500 kg
(16,534.67 lb)

Speed

0.2 m/s
(0.66 ft/s)

Effective width

Min.: 960 mm
(38 in)

Max.: 1,050 mm
(41 in)

Description

PALLET HANDLING CHAIN CONVEYOR Side Frame        Steel tube frame , powder coated RAL 9006. Number of Strands        2 and 3. Distance Between Strands        460 mm, 475 mm, and 525 mm. Chain Type        10B-2 5/8” chain with straight side plates. Maximum Load        From 1 to 5 1500kg pallets per conveyor. Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Conveyor Speed        12 m/min / 39.37 ft/min. Load Travel Direction        Bidirectional. Conveyor Supports        Not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Conveyor Support.        Walkover Plate.        Fixed End Stopper.        Pneumatic Blade Stopper.        Adjustable Photocell Brackets.        Adjustable Side Guide.        Transfer Link.
