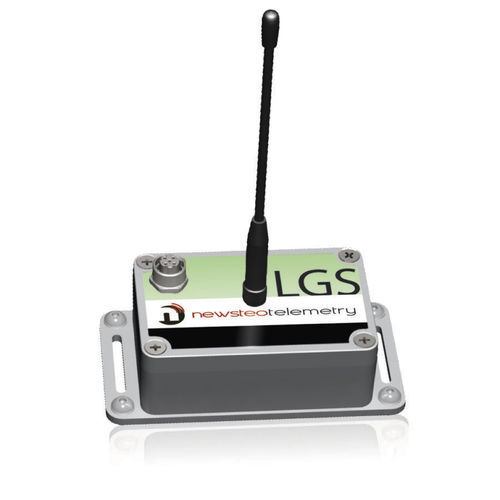

Event recorder LGS39-001

universalindustrialdata logger

Product overview
The LGS39 is an impulse recorder designed for pulse input measurement and data logging. Measurement range: up to 10 Hz. Signal: pulse input. Certification: CE.

Operating modes

• Monitoring (real-time monitoring applications): the recorder sends its measurements to the PC in real time. If a measurement is not received by the PC, it stores it in its internal memory and sends it to the PC on the following communication channel.
• Recording / Restitution (follow-up): the recorder records the measurements it takes in its on-board memory. The user can download all the stored measurements to the PC at any time.

Main equipment / fitted items

• IP65 enclosure (Aluminium)
• ½ wave antenna (included)
• Power supply: AA Lithium Thionyl battery (included) with plug-in connector

Notes
The product is supplied with an aluminium IP65 housing. The tightness level is valid only if the probe and antenna are correctly tightened (seals crushed).

Caractéristiques / spécifications techniques

• Model: LGS39
• Interface: impulse
• Number of inputs: 1
• Measurement range: Up to 10 Hz
• Minimum pulse duration: 20 ms
• Communication type: Dry contact or CMOS 0 – 3.5V
• Accuracy (without sensor): Not applicable
• Resolution: Not applicable
• Power supply for the sensor: Not applicable
• Temperature sensor: EYES
• Temperature range of use of the Logger: -40°C … +85°C
• IP level of data logger and the connector: IP65
• Battery: AA Lithium Thionyl battery (included) with plug-in connector
• Autonomy: Up to 3 years (at 25°C with a measurement frequency of 10 minutes; average value may vary slightly depending on use, given with the product working in non-alert mode)
• RF antenna connector: SMA connector
• Antenna: ½ wave antenna (included)
• RF range in free land: 100 m to 1 km (depending on the antenna used on the reception side)
• Memory capacity: 32 256 measurements with date and time
• Time and date resolution: 1 s
• Time deviation: +/- 2 min/month at 25°C
• Data memory retention: 100 years
• ILS: Integrated ILS for various functions: Product wake-up when placed in hibernate mode (deep sleep); Forced measurement outside the set measurement frequency
• Features: Aluminium casing (4 mm)
• Fixation: Fixation support provided screwed in the casing for screwing in 4 points or strapping through 2 holes
• Colour: Grey (aluminium)
• Dimensions (w/o antenna): Length: 98 mm; Depth: 64 mm; Height: 34 mm
• Weight: About 280 g
• Stickers: 2 stickers on the product: 1 sticker on the top face giving the product range; 1 sticker on the side giving the complete product reference and its serial number
