Belt conveyor Narrow Trak

verticalhandlingmodular

Overview

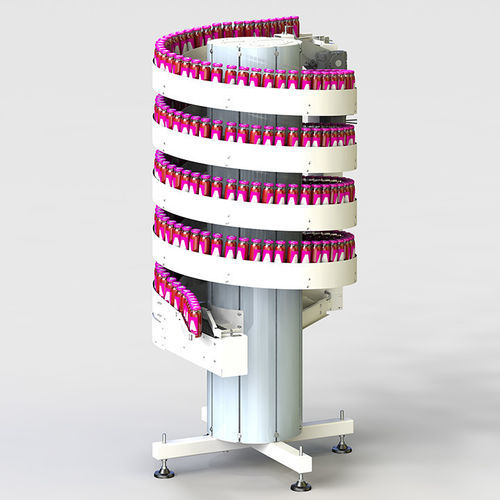

The Apollo Narrow Trak is a vertical spiral conveyor designed for compact, high-elevation handling of small packages and items. With a reduced footprint compared to standard spiral conveyors, it is intended for small single units and continuous mass flow in industries such as personal care, food & beverage and consumer packaged goods.

How it works
The Narrow Trak uses Apollo's modular spiral concept with a nesting slat design. Slats run in a rail using rolling friction without additional supports, enabling smooth, low-friction transport and reliable end- and side-transfer of small cartons, bottles or containers in single-file or continuous flow.

Features

• Load capacity up to 25 kg/meter
• Maximum speed up to 60 m/min
• Single motor drive
• Designed for continuous 24/7 operation
• Compact footprint for space-constrained layouts
• Low rolling friction; no supports under slats
• Built-in protection and low noise
• Modular construction for easy configuration
• No lubrication required under slats
• Possible side transfer and reliable end-transfer
• Low maintenance

Slat width
150 mm | 230 mm

Configurations

• Standard
• Stainless steel (dry use)
• Stainless steel (washdown)

Suitable for
Small single units and high-throughput small-package applications such as coffee cups, cosmetics, facial care products, canned foods, fragrances, small bottles and similar items in personal care, food & beverage and related sectors.

Documents
Brochure and Facts & Measurements (PDF) available.

Technical specifications

• Load capacity: up to 25 kg/meter
• Maximum speed: 60 m/min
• Drive: single motor
• Operation: continuous 24/7 capable
• Slat widths: 150 mm, 230 mm
• Configurations: Standard; Stainless steel (dry); Stainless steel (washdown)
• Design: modular nesting slat design; rolling-friction slat travel in rail (no supports)
• Maintenance: low maintenance; no lubrication under slats required
• Other: compact footprint; low noise level; built-in protection; side transfer capability
