Bar conveyor Wide Trak

verticalspiraltransport

Overview

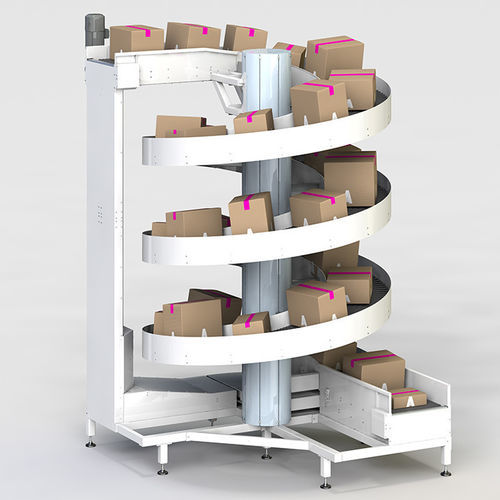

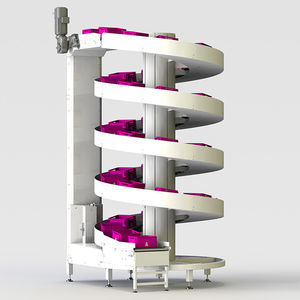

The Apollo Wide Trak Spiral Conveyor is a vertical conveying solution for a wide range of load sizes, designed for continuous high throughput while minimizing floor footprint. It is suited to warehousing, order picking, e-commerce and postal operations.

How it works
The Wide Trak transports items upward or downward using a modular spiral layout that maximizes vertical space. The system can be configured to site constraints and operate clockwise or counter‑clockwise; spiral sections can be specified as reversible.

Characteristics
The conveyor uses a modular design typically driven by a single motor, reducing energy and integration complexity. Slats are manufactured from a nylon composite that requires no lubrication and can be replaced individually without special tools. The slat‑style belt ensures low rolling friction without sliding movements or wear strips. Drive is via a heavy‑duty steel roller chain with low lubrication demand. Slats run on precision steel roller bearings over a polyurethane surface for reliable, low‑maintenance operation.

Features

• Load capacity up to 100 kg per meter
• Maximum total weight capacity approx. 1,450 kg
• Speed up to 60 m/min
• Single motor drive
• Product width up to 900 mm
• Allows simultaneous transport of different load sizes
• Continuous 24/7 operation capability
• Low friction operation
• Built‑in protection
• Modular, easy to assemble and modify
• Low noise level
• No lubrication needed under the slats
• Low maintenance

Configurations

• Standard
• Stainless steel dry use
• Stainless steel wash down

Technical specifications

• Model / Series: Wide Trak
• Load capacity: up to 100 kg/m
• Total weight capacity: approx. 1,450 kg
• Conveyor speed: up to 60 m/min
• Product width: up to 900 mm
• Slat width (examples shown): 760 mm | 900 mm
• Drive: single motor (modular design)
• Belt type: slat‑style nylon composite belt
• Drive chain: heavy duty steel roller chain (low lubrication demand)
• Slat support: precision steel roller bearings on polyurethane surface
• Operation: up/down, clockwise/counter‑clockwise; optional reversible
• Suitable for: warehousing, order picking, e‑commerce, postal operations
