Brushless servo motor J0750 series
ACDC220 V

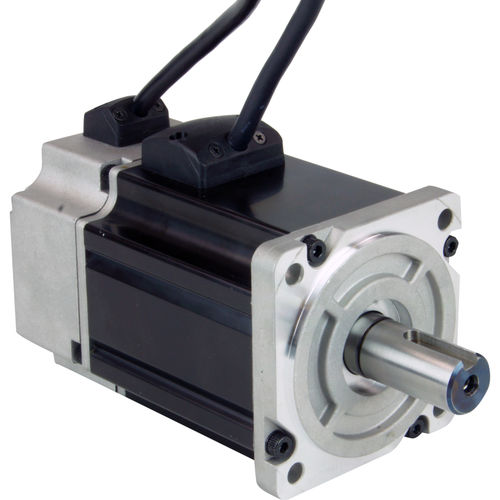

Brushless servo motor - J0750 series - Applied Motion Products - AC / DC / 220 V
Brushless servo motor - J0750 series - Applied Motion Products - AC / DC / 220 V
Brushless servo motor - J0750 series - Applied Motion Products - AC / DC / 220 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
brushless, AC, DC
Voltage
220 V, 48 V
Configuration
with brake, compact
Protection class
IP65, rugged
Applications
with built-in encoder
Other characteristics
high-resolution, high-torque
Power

750 W
(1.02 hp)

Intensity

Max.: 56.5 A

Min.: 4.5 A

Torque

Max.: 6.8 Nm
(5.015423 ft.lb)

Min.: 2.3 Nm
(1.696393 ft.lb)

Rotational speed

Max.: 5,500 rpm
(34,557.5192 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Description

• High torque density • Low rotor inertia • Compact size • High-resolution, incremental encoders (2500 lines, 10000 counts) • IP65 rated for harsh environments High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271. Please note that a VL series gearhead purchased for this motor will require a special mounting adaptor and 2 weeks lead time. Please contact customer service for the price of this adaptor. Part Number: J0750-302-5-000 Frame Size: 80 mm Rated Speed: 3000 rpm Torque Constant: 4.8 in-lb/A Voltage Constant: 36.6 V/krpm Armature Resistance: 1.47 Line-to-Line ohms Armature Inductance: 8.2 Line-to-Line mH Motor Length: 5.19 inch Rotor Inertia: 1.26E-02 oz-in-sec2 Weight: 5.8 lbs Integral Holding Brake: No Operating Temperature: 0 to 40 °C Insulation Class: Class B (130 ºC) Shaft Diameter: 19 mm (0.748 inch) Maximum Radial Load: 60.7 lbs Maximum Thrust Load: 20.2 lbs
