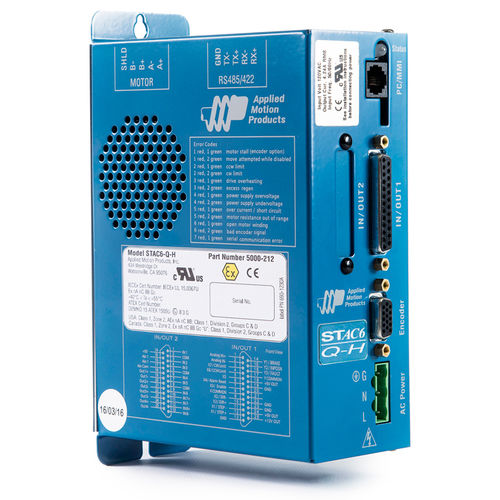

Stepper DC drive STAC6-Q-H

single-phasefor motors

THE ONLY INTERNATIONALLY CERTIFIED HAZARDOUS LOCATION STEPPER DRIVE AVAILABLE • ATEX and IECEx certified for Class I, Zone 2 locations • UL certified for Class 1, Div 2, Group C & D locations • HazLoc Step Motor Drive • HazLoc certified for USA, Canada, Europe and Middle East • Superior performance • Advanced anti-resonance algorithm • Torque ripple smoothing • Microstepping to 51,200 steps/rev • Stored program for stand-alone operation • High power output for medium and large size step motors Built for Hazardous Locations Class I hazardous locations are those in which flammable gases, vapors or liquids are, or may be, present in the air in quantities sufficient to produce explosive or ignitable mixtures. Zone 2, also known as Division 2, defines a hazardous location in which flammable gases, vapors or liquids are not likely to occur in normal operation but, if they do occur, will only persist for a short period of time. The STAC6-Q-H stepper drive is certified for Class I, Zone 2 locations (also known as Class I, Division 2 locations). Explosive atmospheres are commonly found in the oil, gas, mining and printing industries, as well as in paint-finishing locations and aircraft hangars. • Certified Category 3 equipment under ATEX Directive 2014/34/EU Superior Performance Stepper drives from Applied Motion Products are the best in the business. The STAC6 offers best-in-class anti-resonance that ensures optimal performance of the step motor over the widest speed range. The drive is powered by single-phase 120 VAC which generates a nominal 160 volt DC internal bus voltage capable of driving the highest torque NEMA 34 and 42 frame step motors on the market.
