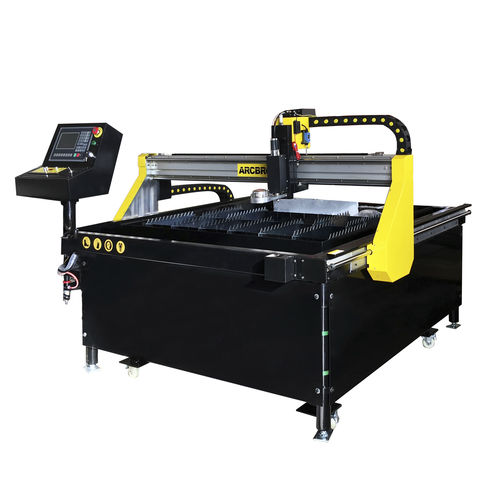

Metal cutting machine STINGERfor steelfor stainless steelfor aluminum

metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
Add to favorites
Compare this product
indicative price

Characteristics

Material
for metal, for steel, for stainless steel, for aluminum, for iron
Technology
plasma
Product handled
sheet metal
Control type
CNC
Associated function
profiling
Applications
for metal pipes
Other characteristics
automatic, high-speed, precision, compact, portable, servo-driven, 2-axis
X travel

800 mm, 1,000 mm, 1,300 mm, 1,500 mm (31 in)

Y travel

800 mm, 1,000 mm, 1,300 mm, 2,500 mm, 3,000 mm (31 in)

Cutting speed

Max.: 20,000 mm/min (13.123 in/s)

Min.: 0 mm/min (0 in/s)

Description

•Compact and Delicate Advanced design concept and excellent manufacture processing assure convenient operating experience and excellent cutting result. •TURE SYNCHRONOUS Transmission One high power servo motor drives one main shaft to achieve high speed and delicate movement of Y axis of two sides leading by two belts. Avoids most potential vibration. Stable enough for big cutting area. Separable Modularization Structure The first divided CNC Cutter in the word. It's integrated by different optimized forming modules. There are necessary component and optional ones to approach customer's realistic needs freely. Thickness range: 0.1 mm-35mm. Saving investment but getting highest performance. •V-Shape Wheel Positioning Solution improves the stability during the actual operation. The helical gear and rack with V-shape wheel positioning solution improves the stability of New Stinger during the actual operation. •Friendly Loading Table Table height is higher than guiding rail system, easy loading process. Cutting Area1000mm x 1000mm 1300mm x 1300mm 1300mm x 2500mm 1500mm x 3000mm Input Voltage110 V/220 V Frequency50HZ/60HZ Cutting Speed0~20,000mm/min Cutting Thickness0.3mm~30mm(Can be Customized) CrossbeamAluminum(60x 145) Plasma Power SolutionARCBRO AirCut Hypertherm Program TransmissionUSB Weight400KG
