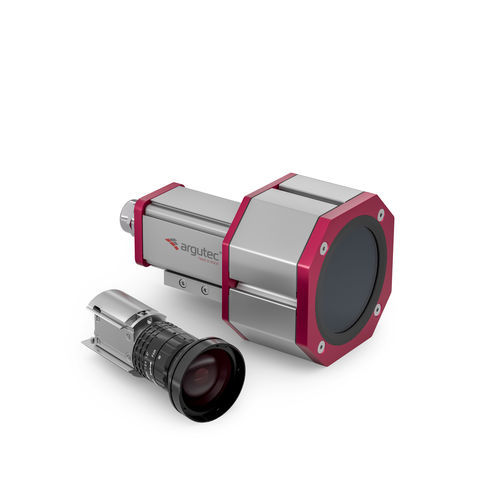

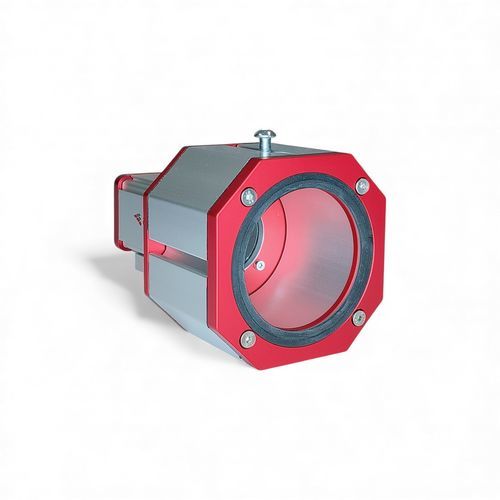

Camera housing CH50-87.DIA83

wall-mountcylindricalstainless steel

Overview

• IP69*
• Sealed aluminium enclosure
• Ø83 mm H-K9L front glass (N-BK7 eq.), AR MgF₂, 390–700 nm (opt. 900 nm)
• Designed for small industrial cameras (e.g. 27×27, 29×29, 30×30, 31×31, 40×30, 29×44 mm) with large lenses (enlarged front section)
• Passive cooling
• Camera mounting + mounting kit + slot nut included
• Custom length and optional custom cable gland
• IMPORTANT: Please specify the camera and lens model in your order to ensure compatibility.

IP69 (IP69K)
The CH50-87.DIA83 enclosure is the result of integrating the CH50 and CH87 predecessors, both of which met IP69 certification requirements. The CH50-87.DIA83 itself has not yet been officially certified as a standalone product.

Passive cooling as secondary protection for the camera and lens
As with the CH50, the housing provides passive cooling that reduces camera temperature. Temperature-history tests show that without the cover camera heat is transferred to the lens, while with the housing heat dissipation keeps the lens slightly cooler.

Housing dimensions and camera mount
The CH50-87.DIA83 offers a rear inner diameter of 50 mm for the camera section and a front inner diameter of 87 mm for the lens section. The clear aperture of the front glass is 83 mm to minimise image vignetting. Cover length is selected per customer requirement. The camera mounts to the internal bracket with 2 screws M2 or M3 (standard prepared for M2 with 18 mm pitch). For other cameras the mount can be prepared with M3 spacing. Firm fixation under high vibration is achieved by pressure using a special expansion piece included in the delivery.

Technical specifications

• Model: CH50-87.DIA83
• Ingress protection: derived from IP69-certified predecessors (CH50 and CH87); CH50-87.DIA83 not yet certified standalone
• Material: sealed aluminium enclosure
• Front glass / visor: Ø83 mm H-K9L glass (N-BK7 equivalent), AR MgF₂ coating
• Transmission range (glass): 390–700 nm (optional up to 900 nm)
• Inner rear diameter (camera section): 50 mm
• Inner front diameter (lens section): 87 mm
• Visor diameter (clear aperture): 83 mm
• Compatible cameras: small industrial cameras 27×27, 29×29, 30×30, 31×31, 40×30, 29×44 mm
• Cooling: passive cooling to reduce camera and lens temperature
• Mounting: camera mounting with 2×M2 (standard, 18 mm pitch) or configurable to 2×M3; mounting kit and slot nut included
• Vibration securing: special expansion piece included
• Options: custom length, optional custom cable gland
• Typical delivery time: 3 working days
