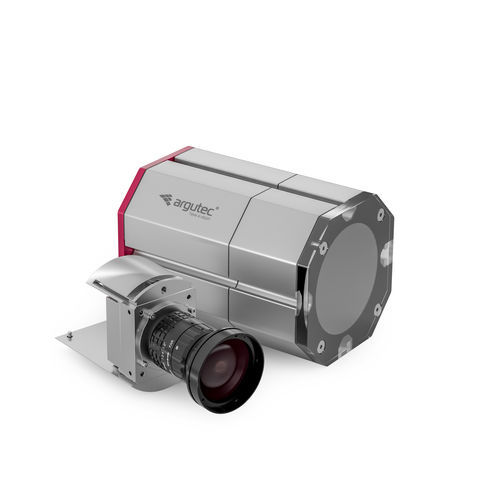

IP66 camera housing CH87.DIA87.PMMA

ruggedIP68IP69K

Overview

• IP69 / IP69K
• Rugged sealed aluminium enclosure
• Ø50 mm PMMA window, spectral range 390–700 nm
• For large industrial cameras and varied lens assemblies
• Guiding rods for easy installation and reconfiguration
• Passive cooling via solid aluminium body
• Variable mounting (slot nut)
• Custom length and optional custom cable gland available
• IMPORTANT: Please specify the camera and lens model in your order to ensure compatibility.

Details
The CH87 Industrial Camera Enclosure is a universal solution for cameras and lenses that do not fit smaller housings such as the CH50 line. The sealed aluminium housing protects the camera from mechanical damage, dust, dirt and grease while providing baseline passive cooling.

Special sealing designs and construction deliver resistance to pressurized water (IP66) while the overall enclosure meets IP69/IP69K ratings.

Compatible cameras (table)

• BASLER: Basler ace acA4096, acA4112; Basler beat beA4000; Basler MED ace 12.3, MED ace 8.9; Basler pilot piA1000, piA1600, piA2400, piA640; Basler racer raL12288, raL2048, raL4096, raL6144, raL8192; Basler runner ruL2048, ruL2098; Basler scout scA1300, scA1400, scA1600, scA640, scA750
• COGNEX: Cognex CIC-2900, CIC-4KL, CIC-5000
• FLIR: Flir Firewire, Flir Gazelle, Flir Grasshopper2, Flir Grasshopper3, Flir Chameleon3, Flir IR A35, Flir IR A65, Flir Oryx, Flir USB2
• OPTRIS: Optris IR PI 05M, IR PI 160, IR PI 1M, IR PI 200, IR PI 230, IR PI 400i, IR PI 450 G7, IR PI 450i, IR PI 640, IR PI 640 G7
• KEYENCE: Keyence CX-V CA-H2100

Documents available

• Datasheet (EN)
• User manual (EN)
• IP69 Test Report

Technical specifications

• SKU: CH87.DIA87.PMMA
• Weight: 2.5 kg
• IP Rating: IP69/IP69K
• Inner housing diameter: 87 mm
• Window diameter: 87 mm
• Window material / spectral range: Ø50 mm PMMA, 390–700 nm
• Housing material: rugged sealed aluminium (provides passive cooling)
• Mounting: guiding rods for easy installation and reconfiguration; variable mounting (slot nut)
• Options: custom length, optional custom cable gland
• Delivery time: 12 weeks
• Note: For infrared cameras, the required glass / germanium material must be specified in the order.
