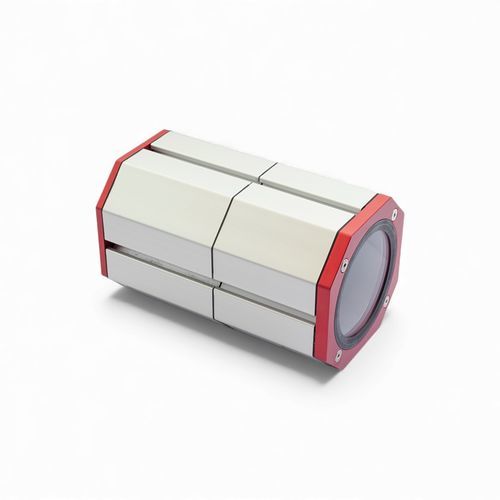

Camera housing CH87.DIA83

wall-mountcylindricalstainless steel

Overview
The CH87 Industrial Camera Enclosure is a universal solution for protecting various larger cameras and lenses in harsh industrial environments. It is commonly used in machine vision application through variety of industries. The camera housing provides increased protection of the industrial camera not only from mechanical damage but also against dirt and grease. Special designs and seals provide IP69 resistance to pressurized water and dust. Thanks to solid aluminium, the enclosure body also serves as a heatsink.

Key features

• IP69 rating
• Rugged sealed aluminium enclosure
• Window: H-K9L glass (N-BK7 equivalent), AR MgF₂ coating
• Transmission range: 390–700 nm (optional up to 900 nm)
• Designed for large industrial cameras
• Guiding rods for easy installation and reconfiguration
• Passive cooling (aluminium body)
• Variable enclosure mounting (slot nut)

• Custom length
• Optional custom cable gland

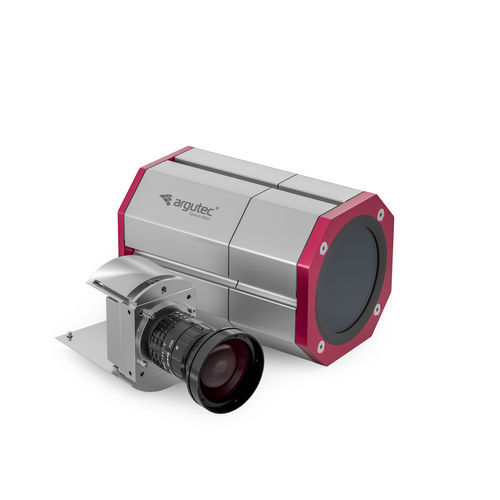

• Camera mounting kit for cameras upto 61x61 mm

Specifications / technical data

• IP Rating: IP69
• Inner housing diameter: 87 mm
• Window diameter: 83 mm
• Window glass: H-K9L (N-BK7 equivalent), AR MgF₂
• Transmission range (standard glass): 390–700 nm (optionally up to 900 nm)
• Enclosure material: aluminium (sealed, rugged)
• Cooling: passive (aluminium body serves as heat sink)
• Mounting: variable mounting (slot nut) and guiding rods for installation/reconfiguration
• Customisation: custom length, optional custom cable gland, camera mounting kit and branding available
• Weight: approx. 2.5 kg (according to length)
