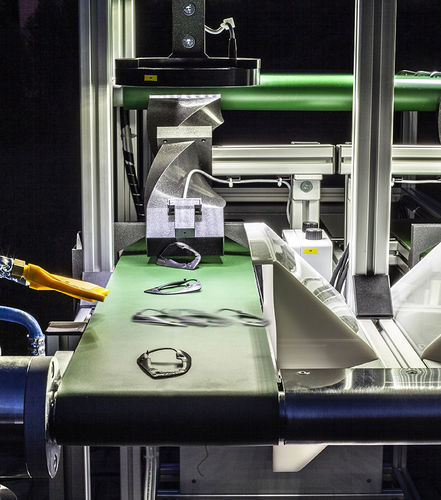

Quality control conveyor system AMV-B-2S2L

for IPCfor camerasfor inspection machines

Overview
The inspection conveyor is designed for automated visual inspection of products placed on a belt by a robot, primarily for plastics and similar industries. The system inspects products from two sides and identifies surface defects. It is modular and configurable (single-sided or additional sides) to match production requirements.

Key features

• Two-sided inspection: product rotation enables camera inspection of both faces to improve defect detection.
• AI evaluation: ArgutrackDNN performs automated image analysis to reduce manual review.
• Automated transport and control: products are fed on the first belt for initial inspection; cameras are mounted in protective aluminium housings.
• Automated sorting: conforming parts continue on the line while defective parts are automatically rejected.
• Complete electronics: industrial-grade motors and cameras ensure steady, accurate operation.
• Aluminium structure: lightweight, rigid frame for durability and handling.
• Mobility: mounted on wheels for easy repositioning within the production area.
• Simple installation: plug-and-play electrical connection; configurable per inspection needs.
• Standard evaluation speed: ~50 ms per image.
• Drive: two motors driving two belts.
• Control: Neousys industrial computer (IPC) with GPU for real-time image processing.
• Integrated lighting: dedicated illumination for consistent imaging conditions.

Case study: Inspection of plastic moldings for the automotive industry
Before:
9,600 pcs/day
8 operators per shift
Subjective detection methods
Poor defect traceability
High training and attention requirements
Risk of operator oversight

After:
86,400 pcs/day
1 operator per shift
Consistent AI-driven machine vision detection
Comprehensive defect tracking and statistics
Lower training and attention needs
Reduced risk of operator oversight

Hardware and AI evaluation

• ArgutrackDNN: staged learning AI for automated image evaluation and progressive reduction of manual intervention.
• Camera protection: aluminium housings to maintain camera performance in industrial environments.
• IPC Neousys: industrial PC with GPU for accelerated image processing and defect detection.
• Lighting: integrated illumination to guarantee repeatable imaging quality.

Technical specifications

• Evaluation speed: ~50 ms per image.
• Inspection sides: two-sided inspection (rotating mechanism or sliding with vibration).
• Drive system: two motors driving two belts.
• Processing unit: Neousys industrial computer with GPU.
• AI: ArgutrackDNN for automated image evaluation and defect classification.
• Camera protection: aluminium housings.
• Structure material: aluminium frame.
• Mobility: wheels for repositioning.
• Installation: plug-and-play power connection; configurable for single- or multi-sided inspection after consultation.
• Integrated lighting for optimal imaging.
• Typical ROI example: ~4 months (case study).
• Datasheet versions available: EN and CZ (v-1-2024).
