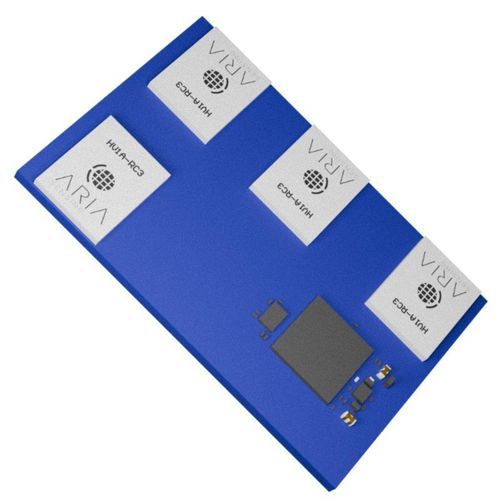

Radar sensor module AHM3D

Product
UWB radar module AHM3D for 1D/2D/3D detection and ranging.

Key Features

• emPulse Technology: Yes
• Detection Capability: 1D/2D/3D
• UWB regulations compliance: Worldwide capable

Performance & Optics
Max Range (moving person): 12 m
Field of View: 120° x 120°
Beamwidth: 30° x 30°
Embedded Antenna FOV: ~(±60° by ±60°)
Frequency range: 7.3 GHz to 9 GHz

Environmental & Power
Operating Temperature Range: -40°C to +85°C
Power Supply: 1.8 Vdc
Power Consumption: 90 mA @ 1.8 V

Hardware & Interfaces
Flash memory: 2 MB
On-board microcontroller: RISC-V
Interfaces: UART, SPI
Size: 49.5 mm x 32 mm

Technical specifications

• Product type: UWB Radar Module
• Model: AHM3D
• Detection Capability: 1D/2D/3D
• Max Range (moving person): 12 m
• Field of View: 120° x 120°; Embedded Antenna FOV: ~(±60° by ±60°)
• Beamwidth: 30° x 30°
• Frequency range: 7.3 GHz to 9 GHz
• Power Supply: 1.8 Vdc; Power Consumption: 90 mA @ 1.8 V
• Flash memory: 2 MB
• On-board microcontroller: RISC-V
• Interfaces: UART, SPI
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 49.5 mm x 32 mm
