Radar sensor module LT103 OEM XG

Product overview

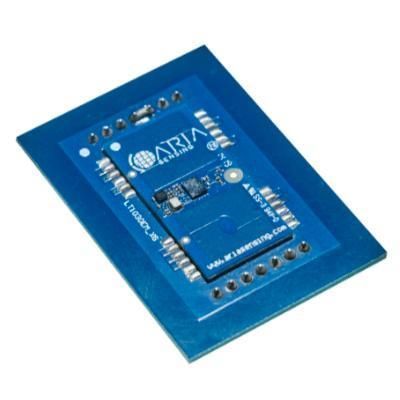

A complete micro-UWB radar module designed for SMD mounting for indoor applications. The LT103 OEM XG is a compact PCB with the LT103OEM mounted and provides standard 2.54 mm-pitch pin headers for connection to a PC USB port via an FTDI interface, enabling quick assessment of module performance and rapid development of custom algorithms and applications. Supplied software includes a GUI, C++ examples and Matlab/Octave scripts.

Details

• PCB with LT103OEM mounted and standard 2.54 mm-pitch pin headers for FTDI connection to PC USB
• Provided software and examples: GUI, C++ examples, Matlab/Octave scripts

Technical specifications

• Detection capability: 1D
• Max range (moving person): 9 m
• Field of view: 120° × 120°
• Beamwidth: 120° × 120°
• Embedded antenna FOV: approx. (±60° by ±60°)
• Frequency range: 7.3 GHz to 8.5 GHz
• UWB regulations compliance: Worldwide capable
• Operating temperature: -40°C to +85°C
• Flash memory: 256 kB
• Size: 45 mm × 60 mm
• Power consumption: 85 mA @ 3.3 V
• On-board microcontroller: ARM M4F
• Interface: UART
• Power supply: typical 1.8 Vdc to 3.6 Vdc
• emPulse Technology: No
