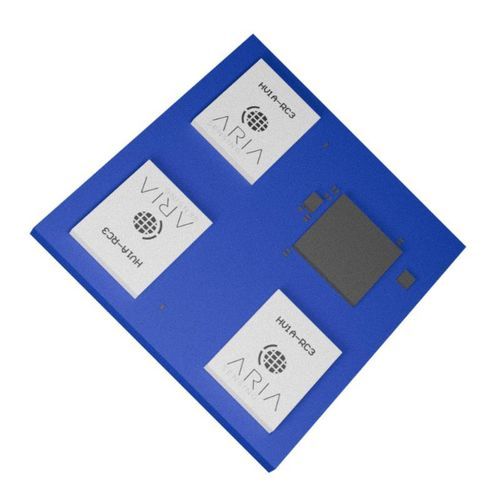

Radar sensor module AHM3DSC
Add to favorites
Compare this product
Characteristics
- Other characteristics
- radar
Description
Overview
Compact radar module for presence and motion detection featuring emPulse UWB technology, supporting 1D/2D/3D detection and on-board RISC-V processing.
Key features
Technical specifications
Applications
Compliance & integration
Compact radar module for presence and motion detection featuring emPulse UWB technology, supporting 1D/2D/3D detection and on-board RISC-V processing.
Key features
- emPulse Technology: Yes
- Detection capability: 1D/2D/3D
- UWB regulations: Worldwide capable
- Maximum range (moving person): 12 m
- Field of view: 120° × 120°
- Beamwidth: 45° × 45°
- Embedded antenna FOV: ≈ ±60° × ±60°
- Frequency range: 7.3 GHz–9 GHz
- Operating temperature: -40 °C to +85 °C
- Flash memory: 2 MB
- Dimensions: 33 mm × 35 mm
- Power consumption: 90 mA @ 1.8 V
- Microcontroller on board: RISC-V
- Interfaces: UART, SPI
- Power supply: 1.8 Vdc
Technical specifications
- Product type: Radar module
- Frequency: 7.3–9 GHz
- Detection modes: 1D, 2D, 3D
- Range (moving target): up to 12 m
- FOV / beamwidth: 120° × 120° / 45° × 45°
- Embedded antenna FOV: ≈ ±60° by ±60°
- Temperature range: -40 °C to +85 °C
- Memory: 2 MB flash
- Dimensions: 33 mm × 35 mm
- Power: 1.8 Vdc, 90 mA
- Microcontroller: RISC-V
- Interfaces: UART, SPI
Applications
- Occupancy and presence detection, people tracking, gesture sensing, industrial automation, robotics, security systems
Compliance & integration
- Designed for worldwide UWB regulatory compliance
- Serial interfaces (UART/SPI) for integration with host systems
