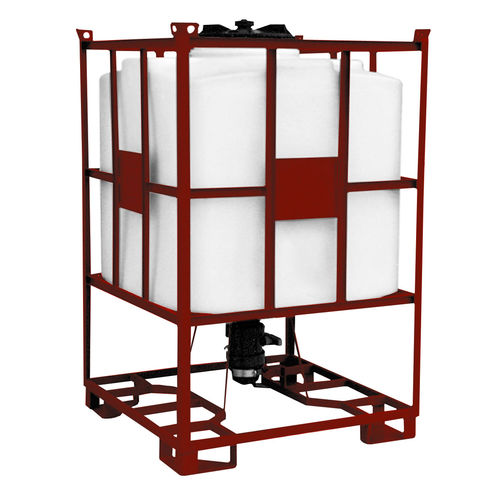

polyethylene IBC container / for liquids / with protective cage / stackable
IBC-TN series

{{requestButtons}}

Characteristics

  • Material:

    polyethylene

  • Applications:

    for liquids

  • Other characteristics:

    with protective cage, stackable

  • Height:

    1,640 mm, 1,960 mm, 2,055 mm (65 in)

  • Length:

    1,120 mm, 1,200 mm (44 in)

  • Width:

    1,120 mm, 1,200 mm (44 in)

  • Capacity:

    1,080 l, 1,380 l, 1,820 l (285.3 gal)

Description

- rectangular container with screw cap in steel frame
- inner container PE: chemical resistant, food-safe, UV-stabilized
- produced seamlessly within the rotary melt process
- sintered litre scale
- container color: natural-transparent or black
- screw cap made of polypropylene with ventilation
- emptying port R2 ", optional R1" to R4 "
- stackable steel frame (except type IBC-TN / AP), with crane eyes
- steel frame powder coated in red (RAL 3011), galvanized or stainless steel

The IBC-TN fulfills high durability requirements. The inner container can be removed from the rack for exchange. The emptying port is located in the middle underneath of the container and enables a good complete emptying. The container made out of chemical resistant, UV-stabilized and food-safe material LLD-PE (low-linear density polyethylene). The opening of the filling is spacious and the screw cap of polypropylene has a ventilation. The sintered litre scale in transparent tanks enables an optical fill level control. Black tanks are suitable for light-sensitive liquids. The emptying port is R2 "and optionally R1" to R4 ", the steel frame is powder- coated in color and optionally galvanized or available in stainless steel.
