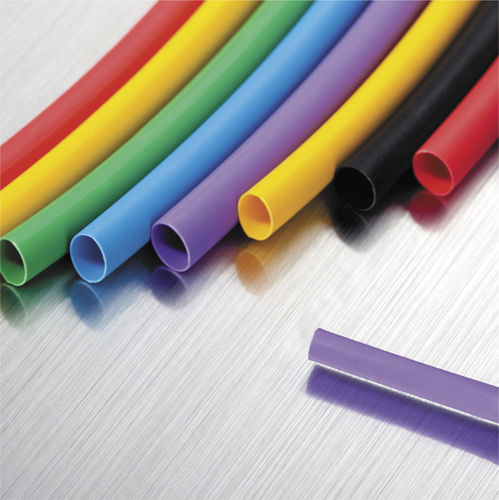

Protection sleeve heat-shrinkableinsulatingtubular
Add to favorites
Compare this product
Characteristics
- Type
- protection, heat-shrinkable, insulating
- Structure
- tubular
- Applications
- for cables, temperature probe
- Material
- polyolefin
- Protection level
- abrasion-resistant, UL, anti-corrosion, high-strength, flame-retardant, waterproof
- Color
- black, white, red, yellow, silver-colored, green, brown
- Other characteristics
- flexible, high-temperature
- Diameter
Min.: 1 mm
(0 in)Max.: 150 mm
(5.9 in)- Temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)- Length
Min.: 15 m
(49'02" )Max.: 300 m
(984'03" )
Description
Item : FLEXIBLE/ FLAME RETARDANT, HIGH PERFORMANCE TUBING
Features:
• Crosslinked polyolefin
• Flame retardant
• General purpose
• High flexibility
• Wide range of colors
• Operating temp.: -55°C to +125°C
• Min. shrink temp.: 70°C
• Min, full recoverytemp.: 100°C
• Shrink ratio: 2:1
• RoHS compliant
