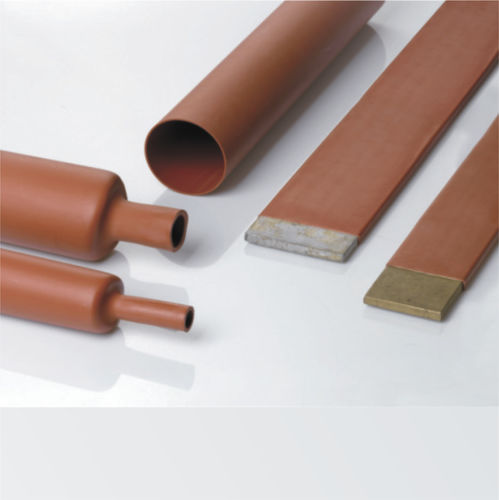

Busbar sleeve HBT seriesheat-shrinkabletubularpolyolefin
Add to favorites
Compare this product
Characteristics
- Type
- heat-shrinkable
- Structure
- tubular
- Applications
- for busbar
- Material
- polyolefin
- Protection level
- halogen-free, UV-resistant, UL, weatherproof
- Color
- brown
- Other characteristics
- flexible
- Diameter
Min.: 30 mm
(1.2 in)Max.: 120 mm
(4.7 in)- Temperature
110 °C
(230 °F)- Length
15 m
(49'02" )
Description
• Medium wall bus bar tubing
• Cross linked polyolefin
• Good tracking resistance
• Excellent electrical properties
• Halogen free
• UV and weather resistance
• Up to 36kV
• Min. full recovery temp.: 110°C
