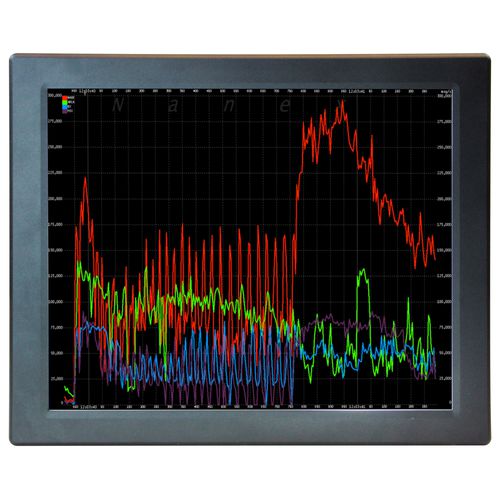

TFT-LCD monitor ADM-1819AP
5-wire resistive touch screen19"1280 x 1024

TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
Add to favorites
Compare this product


Characteristics

Technology
TFT-LCD, 5-wire resistive touch screen
Display size
19"
Resolution
1280 x 1024, VGA
Mounting
panel-mount
Applications
industrial, storage
Other characteristics
HDMI, USB, high-brightness, VGA, stainless steel, NEMA 4

Description

5-Wire Resistive Touch or Tempered Glass RS-232, USB Touch Interface NEMA 4/4X Front Bezel Black Powder Coated or Stainless-Steel Bezel VGA, DVI, HDMI, DP Input 24VDC Operating Voltage Very High Bright Option Available​ Backlight Lifetime - 50,000 hours Visual Characteristics Colors - 16 million Aspect Ratio - 5:4 Viewing Angle (V/H) - 178° / 178° Contrast Ratio - 700:1 Brightness - 450 nits (1000 nits* Very High Brightness Version) Input Interface VGA - Yes DVI - Yes HDMI - Yes Display Port - Yes CVBS - N/A YPbPr - N/A Touchscreen Technology - 5-Wire Resistive Interface - RS-232, USB Driver - Win XP, Win 7, Win10 Front Bezel NEMA 4 - Black Powder Coated NEMA 4X - Stainless Steel (Optional) Power/Thermal Specs. Power Requirement (Max) - 24VDC / 0.53A Power Consumption (Max) - 12.6 W Recommended Power Supply - 18 W Heat Dissipation - 43 BTU/hr Physical Information Mounting - Panel Mount Net Weight - 17 lbs / 7.71 kg Dimension (W x H x D) - 17.8 x 14.6 x 2.39 inch 452.10 x 370.80 x 60.71 mm Recommended Cutout Dimension (WxH) - 17.00 x 13.80 inch 431.8 x 350.5 mm Environmental Operating Temp - 0~50°C (32~122°F), * VHB Version 0~35°C (32~95°F) Storage Temp - -20~60°C (-4~140°F) Humidity - 5% to 95% (non-condensing) Rating - Bezel Meets NEMA 4 / NEMA 4X requirements Certification - CE, UL 508
