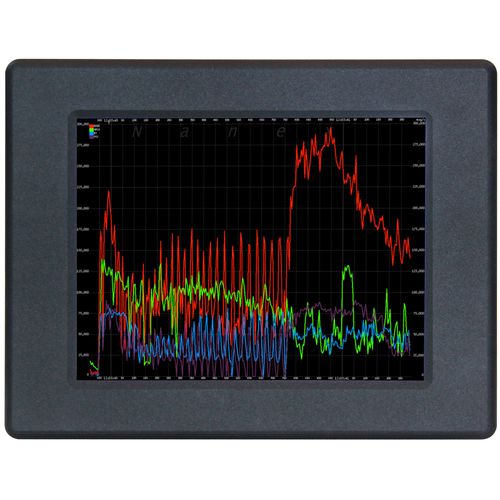

TFT-LCD monitor ADM-1806AP
5-wire resistive touch screen6.5"640 x 480

TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
Add to favorites
Compare this product


Characteristics

Technology
TFT-LCD, 5-wire resistive touch screen
Display size
6.5"
Resolution
640 x 480
Mounting
panel-mount
Applications
industrial, storage
Other characteristics
HDMI, USB, high-brightness, VGA, stainless steel, NEMA 4

Description

5-Wire Resistive Touch or Tempered Glass RS-232, USB Touch Interface NEMA 4/4X Front Bezel Black Powder Coated or Stainless-Steel Bezel VGA, DVI Input 12VDC Operating Voltage LCD Display Backlight Lifetime - 50,000 hours Visual Characteristics Colors - 16.2 million Aspect Ratio - 4:3 Viewing Angle (V/H) - 150° / 160° Contrast Ratio - 800:1 Brightness - 500 nits (1000 nits* Very High Brightness Version) Input Interface VGA - Yes DVI - Yes HDMI - N/A Display Port - N/A CVBS - N/A YPbPr - N/A Touchscreen Technology - 5-Wire Resistive Interface - RS-232, USB Driver - Win XP, Win 7, Win10 Front Bezel NEMA 4 - Black Powder Coated NEMA 4X - Stainless Steel (Optional) Power/Thermal Specs. Power Requirement (Max) - 12VDC / 0.53A Power Consumption (Max) - 7W Recommended Power Supply - 9 W Heat Dissipation - 22 BTU/hr Physical Information Mounting - Panel Mount Net Weight - 4.4 lbs / 2 kg Dimension (W x H x D) - 8.5 x 6.2 x 1.98 inch 215.9 x 157.48 x 50.35 mm Recommended Cutout Dimension (WxH) - 7.69 x 5.37 inch 195.2 x 136.3 mm Environmental Operating Temp - 0~50°C (32~122°F), * VHB Version 0~35°C (32~95°F) Storage Temp - -20~60°C (-4~140°F) Humidity - 5% to 95% (non-condensing) Rating - Bezel Meets NEMA 4 / NEMA 4X requirements Certification - CE, UL 508
