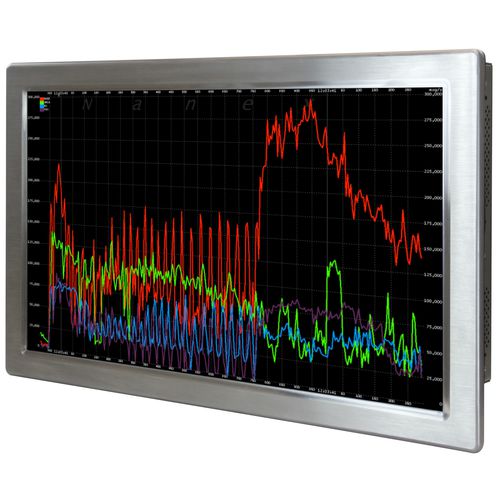

TFT-LCD monitor ADM-1824AP
5-wire resistive touch screen24"1920 x 1080

TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
TFT-LCD monitor
Add to favorites
Compare this product


Characteristics

Technology
TFT-LCD, 5-wire resistive touch screen
Display size
24"
Resolution
1920 x 1080, VGA
Mounting
panel-mount
Applications
industrial, storage
Other characteristics
HDMI, USB, high-brightness, VGA, stainless steel, NEMA 4

Description

5-Wire Resistive Touch or Tempered Glass RS-232, USB Touch Interface NEMA 4/4X Front Bezel Black Powder Coated or Stainless-Steel Bezel VGA, DVI, HDMI, DP Input 24VDC Operating Voltage Very High Bright Option Available​ Backlight Lifetime - 50,000 hours Visual Characteristics Colors - 16.7 million Aspect Ratio - 16:9 Viewing Angle (V/H) - 178° / 178° Contrast Ratio - 5000:1 Brightness - 250 nits (1000 nits* Very High Brightness Version) Input Interface VGA - Yes DVI - Yes HDMI - Yes Display Port - Yes CVBS - N/A YPbPr - N/A Touchscreen Technology - 5-Wire Resistive Interface - RS-232, USB Driver - Win XP, Win 7, Win10 Front Bezel NEMA 4 - Black Powder Coated NEMA 4X - Stainless Steel (Optional) Power/Thermal Specs. Power Requirement (Max) - 24VDC / 0.88A Power Consumption (Max) - 21 W Recommended Power Supply - 30 W Heat Dissipation - 72 BTU/hr Physical Information Mounting - Panel Mount Net Weight - 20 lbs / 9.07 kg Dimension (W x H x D) - 23.91 x 14.50 x 1.81 inch 607.3 x 368.3 x 46.1 mm Recommended Cutout Dimension (WxH) - 23.22 x13.80 inch 589.8 x 350.5 mm Environmental Operating Temp - 0~50°C (32~122°F), * VHB Version 0~35°C (32~95°F) Storage Temp - -20~60°C (-4~140°F) Humidity - 5% to 95% (non-condensing) Rating - Bezel Meets NEMA 4 / NEMA 4X requirements Certification - CE, UL 508
