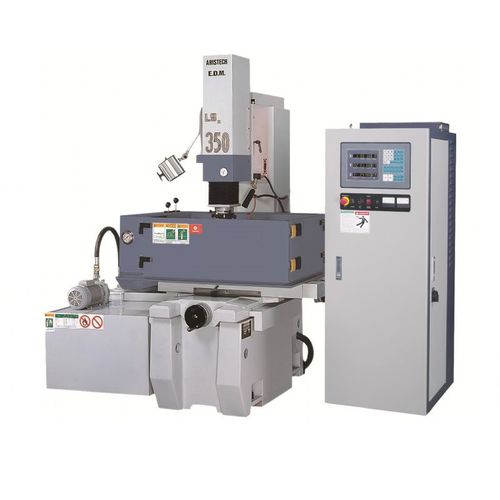

Die sinking electrical discharge machine LS series

CNCprecision

THE HIGHLY RIGID, FINE-GRAINED CAST IRON MACHINE BASE, COLUMN, TABLE. AND TRITE-B COATED SLIDE-WAYS, PROVIDE STABILITY AND LONG SERVICE LIFE. FOUR SETS OF PRECISION LINEAR BEARINGS (GUIDES) AND GROUND LEAD SCREWS (BALL SCREWS FOR LS-550, 580, 650)ON Z-AXIS. THE X&Y AXES ARE EQUIPPED BALL SCREWS (LEAD SCREWS FOR LS-250)FOR ACCURATE POSITIONING. 20 STEPS PROGRAMMABLE IN Z-AXIS CONTROLLER AND BUILT-IN 3-AXES DIGITAL READOUT, LINEAR SCALES SERVO FEED BACK SYSTEM. RESOLUTION 0.005MM OR 0.0002 INCH. STANDARD DIGITAL READOUT FUNCTIONS & EDM SAFETY DEVICE LIKE ARCING 1.0MM & FRAME DETECTOR, DIELECTRIC TEMPERATURE & LEVEL SENSOR DETECTOR, EMERGENCY STOP & AUTO. FIRED DETECTOR & EXTINGUISHER, AND POLARITY REVERSE SWITCH COMPLY WITH & SAFETY REQUIREMENT. ADOPT SLOT-INSET DESIGN FOR CONTROL P.C. BOARDS, CONVENIENT MAINTENANCE. SIMPLE & CLEAR TOUCH PANEL, ALL DIGITAL EDM PARAMETERS, EASY TO UNDERSTAND & OPERATIN. NEW CIS MACHINE COLOR, NEWLY DESIGNED POWER SUPPLY UNIT, COMPLY TO RELEVANT SAFE & HARMONIZED STANDARDS AS THE DIRECTIVES 2006/42/EC, AS AMENDED AND 2006/95/EC. CERTIFICATE NO.1317011210. DATE:08/12/2010. FROM "SAFENET LIMITED" ENGLAND. U.K.
