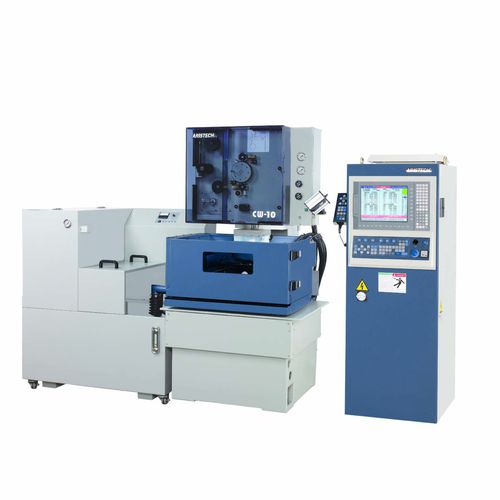

Wire electrical discharge machine CW series
CNC

wire electrical discharge machine
wire electrical discharge machine
wire electrical discharge machine
wire electrical discharge machine
wire electrical discharge machine
wire electrical discharge machine
Add to favorites
Compare this product


Characteristics

Type
wire
Other characteristics
CNC
X travel

300 mm, 400 mm, 500 mm, 600 mm, 800 mm
(12 in, 16 in, 20 in, 24 in, 31 in)

Y travel

200 mm, 300 mm, 400 mm, 500 mm
(8 in, 12 in, 16 in, 20 in)

Z travel

150 mm, 250 mm, 300 mm
(6 in, 10 in, 12 in)

Description

MULTI FUNCTIONS: 1.By inputting the wire diameter , workpiece material & thickness , and desired surface finish , optimum cutting conditions are automatically generated from memory. 2.It is possible to carryout the machining conditions of second, third, fourth cutting; the second cutting easily obtained by using the retrace function. WIRE BREAKAGE RECOVERY: 1.In case of wire breakage during machining, just press button and wire returns to start point.By ressing button , wire will move rapidly retracing machining path back to that point. WATER COOLING CONTROL: 1.The inverter control for pump and water coolant unit keep the thermal balance on every part of the machine and lowexpansion of material in submerged machining. WIRE FEEDING: 1.Operator has only to pass wire through lower nozzle guide and wire will be taken by the water-jet wire-collecting device to the collector. 2. Equipped power mos-transistor circuit system. max. out-put current 25 ampere . REMOTE CONTROL BOX: 1.For the convenience of operator , the remote control box contains many of the functions required for set-up. 2.PC-base designed, CNC Controller with IPC, used G.M. NC-code edit. standard with CF CARD and RS-232c interface. CNC FUNCTION : Mirror image Pitch error compensation Stored stroke limit Machine lock Automatic positioning Start point return Axis exchange Parallel compensation Dry run Optional block skip Manual data input(MDI) Hold point return Backlash compensation Software limit Single block Optional stop Automatic power recover Reference point return Trace function Background edit aper cutting corner R Chinese/English display Retrace function Diagnostic function Inch/metric conversion
