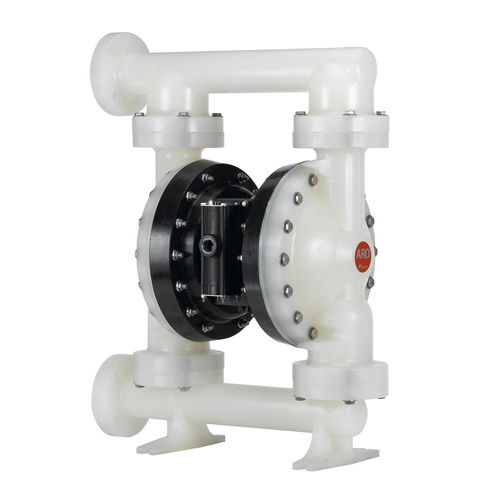

Diaphragm pump PX20P-FXS-XXX
waterfor wastewaterfor chemicals

diaphragm pump
diaphragm pump
Add to favorites
Compare this product


Characteristics

Media
water, for wastewater, for chemicals
Operation
air-driven
Priming
self-priming
Technology
diaphragm
Domain
for the chemical industry, for the petrochemical industry, for wastewater treatment, for the food industry, for the pharmaceutical industry, for the paper industry, for the cosmetics industry, for the printing industry
Applications
handling, recirculation, transfer, filling
Material
PVDF, polypropylene, plastic
Fluid specification
for low-viscosity fluids, for high-viscosity fluids
Protection level
ATEX, explosion-proof, abrasion-resistant, chemical-resistant
Other characteristics
single-stage, compact, high-efficiency, high-performance, standard, corrosion-resistant, non-metal, high-reliability
Flow

Min.: 0 l/min (0 us gal/min)

Max.: 697 l/min (184.1279 us gal/min)

Pressure

Min.: 1 bar (14.504 psi)

Max.: 8 bar (116.03 psi)

Description

2” non-metallic diaphragm pump The ARO nonmetallic 2” PD20P-XXS-XXX compact pump is a favorite of OEMs everywhere around the world. It is designed to be fully corrosion resistant. It has a polypropylene body, stainless steel fasteners and polypropylene, groundable acetal or PVDF casing materials. It features a Simul-Shift valve technology that allows very reliable and ultra-positive signal. The unique ARO unbalanced valve integrated in this pump allows no stalls in operations. The outlet manifold is adjusted to your exact needs and it comes in three versions: center, dual inlet and end. Accessories 66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5 section of hose 67237 Diaphragm Failure Detection Kit 67350 Cycle Counter Kit 67323 Continuous-Duty Muffler 67341-E20N Flange Connection Kit 637369 Air Section Service Kit 637373-XX Fluid Section Service Kit Pump Casing Materials PVDF (Kynar) Polypropylene Diaphragm Materials Nitrile Santoprene Medical Grade Santoprene PTFE (PTFE) w/ Santoprene backer Viton Hytrel
