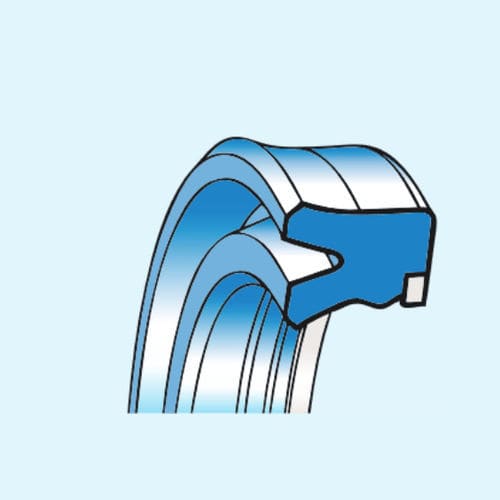

Lip seal RSB2 seriespolyurethaneroundV
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Material
- polyurethane
- Configuration
- round, V
- Application
- for hydraulic fluids, rod
- Other characteristics
- hydraulic, abrasion-resistant, anti-extrusion, with anti-extrusion ring
- Temperature limit
Min.: -34 °C
(-29 °F)Max.: 110 °C
(230 °F)- Pressure limit
400 bar, 500 bar
(5,801.5 psi, 7,251.9 psi)- Diameter
Min.: 40 mm
(1.575 in)Max.: 125 mm
(4.921 in)- Outer diameter
Min.: 55 mm
(2.165 in)Max.: 145 mm
(5.709 in)- Shore A hardness
93 unit
- Speed
0.5 m/s
(1.6 ft/s)
Description
The RSB2 seal type is similar to the RSB type with anti-extrusion ring. This seal is recommended when
the coupling clearance between the head and the rod cannot be reduced and in the event of high
pressure peaks
The proposed material is a “C0” type polyurethane, with high elasticity modulus, low compression-set
and high abrasion resistance.
The hardness is 93 Shore A ± 2. Compound reference: C0
