O-ring seal PSQ seriesroundpolyurethanecutting
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Configuration
- round
- Material
- polyurethane
- Application
- piston, housing, profile, cutting
- Fluid
- for mineral oil
- Other characteristics
- dynamic, static, high-pressure
- Temperature limit
Min.: -35 °C
(-31 °F)Max.: 110 °C
(230 °F)- Pressure limit
250 bar, 400 bar
(3,625.9 psi, 5,801.5 psi)- Diameter
Min.: 24.5 mm
(0.965 in)Max.: 109 mm
(4.291 in)- Outer diameter
Min.: 40 mm
(1.575 in)Max.: 130 mm
(5.118 in)- Shore A hardness
93 unit, 98 unit
- Speed
0.8 m/s
(2.6 ft/s)
Description

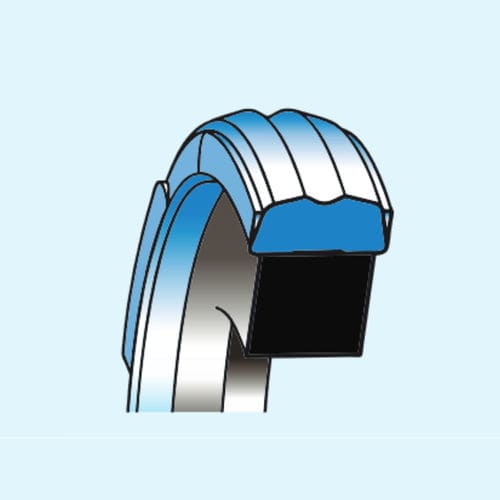

The PSQ seal has a double point profile in the in the dynamic part, and two small steps in
the static part where the Q-ring is housed.
The Q-ring energizes the seal and provides a perfect sealing performance at low and high pressure.
The shape of the central double profile prevents hydrodynamic pressures on the seal and the resulting blow-out effect.
The sealing parts are in polyurethanes with different hardness, according to the specific operating
pressures.
Compound reference: CN (93 Shore A with Q-ring ) or, alternatively, DN (98 Shore A with Q-ring)
Cutting edges or flash must be removed in the housing of the seal.
Ensure a lead-in chamfer in the bore to facilitate the piston installation.
For further information please refer to the assembly instructions on page 26
