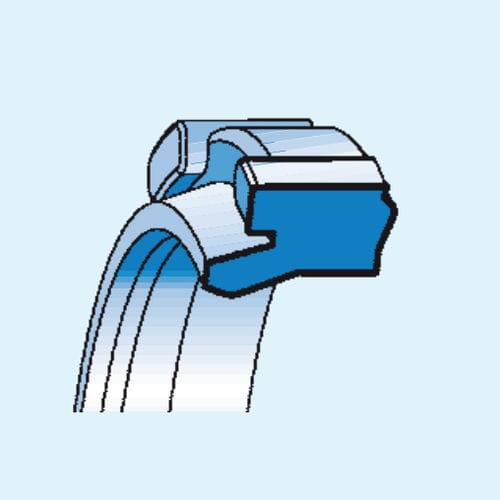

Lip seal CSA seriesroundpolyurethaneedge
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Configuration
- round
- Material
- polyurethane
- Application
- edge, profile, cushioning
- Other characteristics
- pneumatic
- Temperature limit
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)- Pressure limit
20 bar
(290.1 psi)- Diameter
Min.: 6 mm
(0.236 in)Max.: 78 mm
(3.071 in)- Outer diameter
Min.: 10 mm
(0.394 in)Max.: 95 mm
(3.74 in)- Shore A hardness
90 unit, 93 unit
- Speed
1 m/s
(3.3 ft/s)
Description
The CSA cushioning seal is designed for braking points at the end-stroke of pneumatic cylinders.
Several elements contribute to the increased efficiency of the CSA seal braking system:
- the scraping profile with lead-in chamfer for better insertion of the shoulder;
- the external grooves granting auto-alignment;
- the edge at the bottom of the cushioning;
- the use of polyurethane which ensures a long service life thanks to the high modulus of elasticity and the very good impact resistance..
The standard raw material is a low compression-set polyurethane with good flexibility at low
temperature.
Standard compound reference: B0
Alternative compound reference: C0
The assembling is done in semi-open groove, therefore cutting edges or flashes should be
removed otherwise they may influence the sealing performance.
Lubrication with grease will increase lifetime of the seal.
