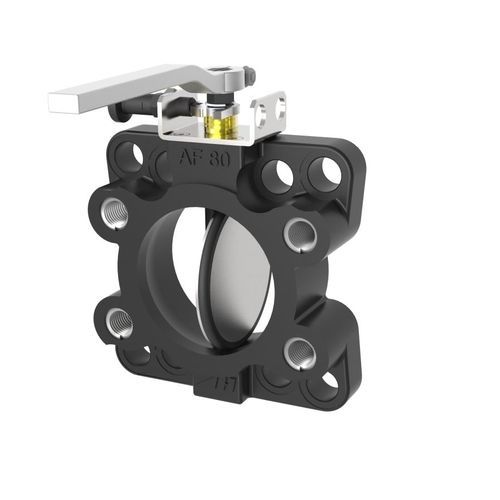

Butterfly valve SDA seriesleverhydraulicaluminium
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, hydraulic
- Body
- aluminium, rubber
- Applications
- flange, pump
- Associated function
- expansion
- Other characteristics
- DIN
- DN
Min.: 40 mm
(1.575 in)Max.: 70 mm
(2.756 in)- Pressure
6 bar, 16 bar
(87 psi, 232.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
The asa butterfly valve with SAE and DIN flange connections allows the combination with an elastic element (rubber compensator expansion joint) to make a short compensating and economical connection with the pump port. The lever position can be changed through our new mechanism. The handle direction (clockwise or counter clockwise) can be changed by turning the switch bracket.
The light weight aluminium material in combination with our well known butterfly valve design is a very attractive solution for a modern hydraulic system. Download the data sheet or contact us for further assistance.
