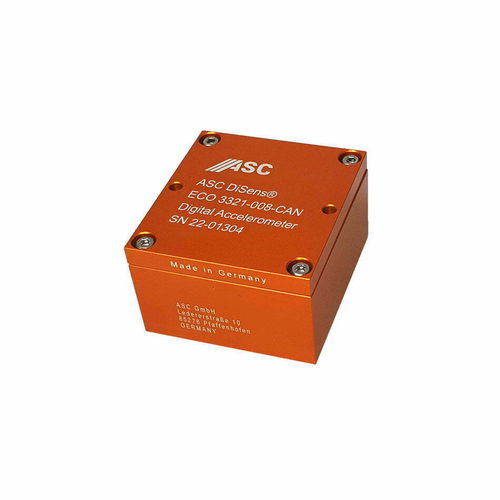

Triaxial accelerometer ASC DiSens® ECO-3321

capacitiveMEMSindustrial

Sensors of type ASC DiSens® ECO-3321 are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables the digital interfaces USB, CAN or RS232 as well as a flexible power supply voltage from 5 to 30 VDC. The sensors of the ASC DiSens® ECO series provide already implemented filter settings enabling a sampling rate of up to 4 kHz at a 3dB-corner frequency of 1 kHz. Furthermore, an extremely robust design leads to a shock resistance up to 10,000 g. Housing: The accelerometers feature a lightweight, reliable aluminum housing with protection class IP67 and a detachable cable with configurable length and connectors. Applications: The triaxial accelerometers allows quick and easy mounting. Due to several options for digital interfaces and filter settings the ASC DiSens® ECO series is ideally suited for condition monitoring and industrial applications.
