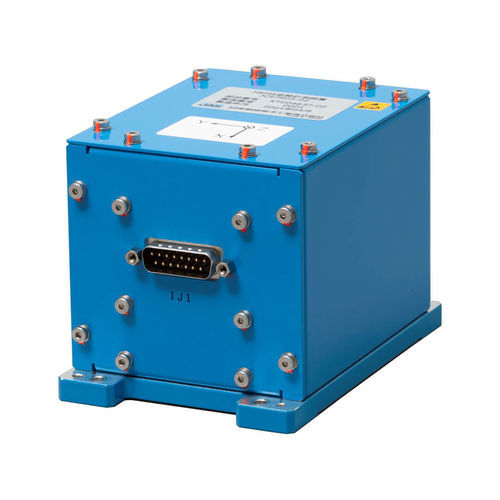

Inertial measurement unit JCS-7603

Overview
The inertial measurement unit (IMU) JCS-7603 is based on high-performance MEMS gyroscopes and accelerometers. Configuration and operation are supported via standard RS-232 or RS-422 digital interfaces. The unit provides gyro bias stability <0.1 °/h, angular random walk (ARW) <0.02 °/√h and accelerometer bias stability of 15 µg. An optional embedded GPS receiver is available on request.

Applications

• Commercial aviation motion control & sensing
• UAVs (unmanned aerial vehicles)
• UUVs (unmanned underwater vehicles)

Distribution / Regulation
In Germany, Austria and Switzerland, ASC GmbH is the authorized distributor of high performance IMUs from Japan Aviation Electronics. There is a general export license for this product which means no individual export license from the Japanese government is needed.

Technical specifications

• Sensor technology: MEMS
• Number of sensitive directions: 6-DOF
• Output signal: RS-232, RS-422 (digital)
• Measurement range: ±10 g (accelerometers) | 400 °/s (gyroscopes)
• Gyro bias stability: <0.1 °/h
• Angular random walk (ARW): <0.02 °/√h
• Accelerometer bias stability: 15 µg
• Optional embedded GPS receiver: available on request
