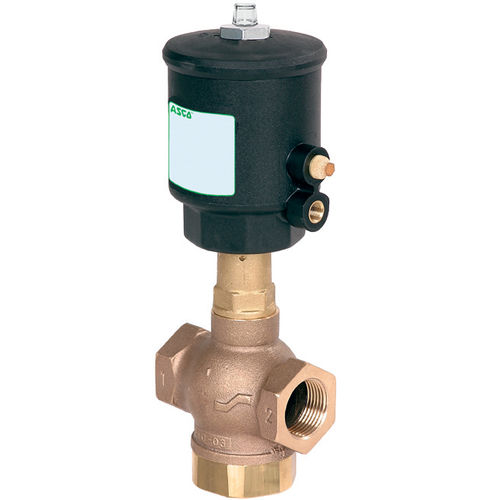

Piston valve 390pneumatically-operatedfor controlfor hot water
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Function
- for control
- Media
- for hot water, for oil, for air, for steam, for inert gases
- Body
- threaded
- Applications
- industrial, for heating
- Material
- bronze
- Number of channels
- 3/2-way
- Other characteristics
- ISO, normally closed, normally open, high-flow, ATEX
- DN
Min.: 10 mm
(0.394 in)Max.: 65 mm
(2.559 in)- Pressure
10.3 bar, 34.5 bar
(149.4 psi, 500.4 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 90 °C
(194 °F)
Description
The ASCO Series 390 are pressure-operated, remote-controlled valves with discs for industrial fluid media. An anti-water hammer design has fluid entry under the disc for quiet operation. The valves feature long service life in high-cycling applications. A wide range of piston-type operators (63 - 90 -125 mm diameters) are rotatable through 360° for maximum performance at different minimum pilot pressures. The 390 Series is suitable for automotive, bottling, commercial laundry equipment, and heating and cooling circuit applications.
Specifications
Port Type G ISO228/1-G BSPP, NPTF
Standards / Regulations IEC 61508, SIL, ATEX, ISO, IEC 60529 (Ingress protection), IP66
Features
Back pressure resistant
Maintenance-free actuators
Satisfies Pressure Equipment Directive 2014/68/EU, category 1 (DN > 25) or article 4.3 (DN ≤ 25)
