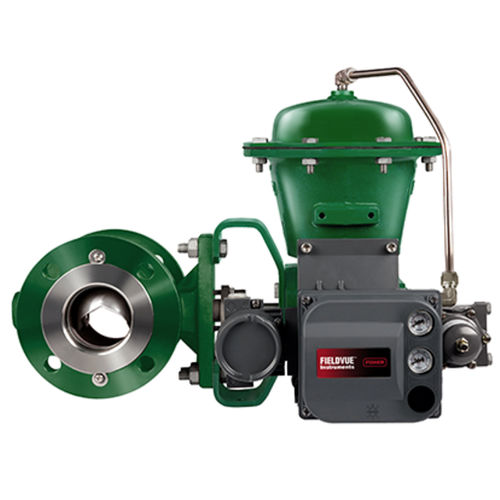

Ball valve V150

pneumaticcontrolsteel

The Fisher Vee-Ball V150 control valve is your best choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation. Specifications CertificationsSIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE Critical ServiceNoise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service Flow CharacteristicsEqual Percentage MaterialCarbon Steel, Stainless, Duplex, Alloy Operating TemperatureStandard Temperature Pressure ClassPN, ASME Process Connection TypeFlanged Shutoff ClassClass III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2) Valve SizeNPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 20, NPS 24 Valve Size StandardNPS, DN Other ConfigurationsContact your local Emerson business partner or sales office to learn about additional specifications or options for this product. Features Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity. The solid HD ball seal construction provides long service life in demanding applications. Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic. Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156. Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
