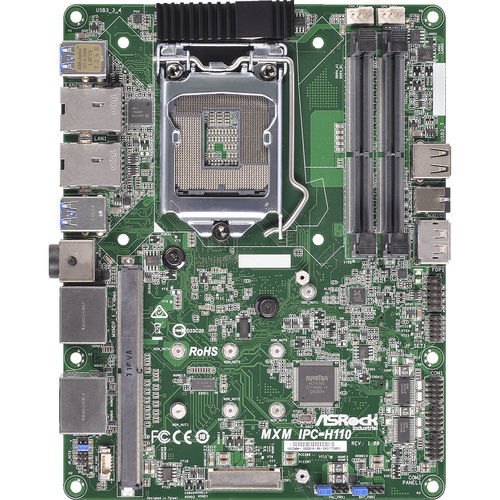

MSTX motherboard MXM IPC-H110

Intel® Skylake Processor6th generation Intel® Core™Intel® Kaby Lake Processor

Processor System BIOS - AMI SPI 128 Mbit Form Factor Dimensions - Micro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm) Memory Technology - Dual Channel DDR4 2400 MHz Capacity - 32GB (16 GB per DIMM) Socket - 2 x 260-pin SO-DIMM Graphics Controller - - CPU integrated graphics to support 1 x DP + 1 x eDP (Gen9 Intel® Graphics, Support for DirectX 11/12, OpenCL 2.0) - Add on MXM Graphic Card (Type B) to support 4 x DP NVIDIA® GeForce GTX 1060/1070/1080 DisplayPort - 1 x Supports max resolution up to 4K@60Hz (CPU integrated graphics) 4 x Supports max resolution up to 4K@60Hz (MXM Graphics Card) eDP - Max resolution up to 4096 x 2304@60Hz MultiDisplay - Hexa Display Expansion Slot Audio Interface - Realtek ALC233, High Definition Audio. Line-out,Mic-in Ethernet Controller/ Speed - LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps Front I/O Audio - 1 (Mic-in or Line-out) Rear I/O Ethernet - 2 x 1 Gigabit LAN DC Jack - 1 Internal Connector USB - 2 x USB2.0 (1 x 2.54 pitch header)TPM - TPM Header Storage M.2 - 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD SATA - 2 x SATA3.0 (6.0 Gb/s) Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 19V DC-In Jack (220W for GTX1060/1070, 270W for GTX1080) Power On - - AT/ATX Supported - AT : Directly PWR on as Power input ready - ATX: Press Button to PWR on after Power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40ºC – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Bulk Package - 2 x SCREW FOR WIFI CARD (13G020305011AK) 2 x COM Cable (14G000000340AK) 2 x SATA Data/Power Cable (14G000104502AK)
