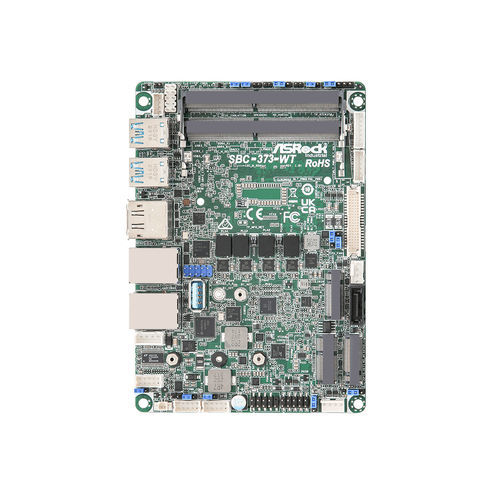

3.5" SBC SBC-373-WT

13th Generation Intel® Core™Intel® Core™ i7-1365UEIntel® Core™ i5-1345UE

Processor System BIOS - AMI SPI 256 Mbit Memory Socket - 2 x 260-pin SO-DIMM Graphics Controller - Intel® Iris® Xe Graphics Max resolution up to 4096 x 2160@60Hz DisplayPort - DP 1.4a Max resolution up to 4096 x 2160@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) eDP - Max resolution up to 1920 x 1080@60Hz MultiDisplay - Quad display (Included 2 output from Type-C) Expansion Slot PCIe - 1 x PCIe x1 Gen3 (supports up to 10W) M.2 - 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (K ey B, 3042/3052) with PCIe Gen3 x1 or SATA3 and USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G SIM Socket - 1 x SIM socket connected to M.2 key B Audio Interface - Realtek ALC256 HD, High Definition Audio. Line-out, Mic-in Ethernet Controller/ Speed - SBC-373P-WT/SBC-373M-WT LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I210IT with 10/100/1000 Mbps SBC-373V-WT LAN1: Intel® I226IT with 10/100/1000/2500 Mbps LAN2: Intel® I210IT with 10/100/1000 Mbps Rear I/O Ethernet - 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN Internal Connector COM - COM1, COM3, COM4 (RS-232/422/485) GPIO - 4 x GPI, 4 x GPO SATA PWR Output - 1 Speaker Header - 1 Security TPM - TPM 2.0 onboard IC StorageSATA - 1 x SATA3 (6Gb/s) RAID - Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: M.2 Key B+ M.2 Key M Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option) Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
