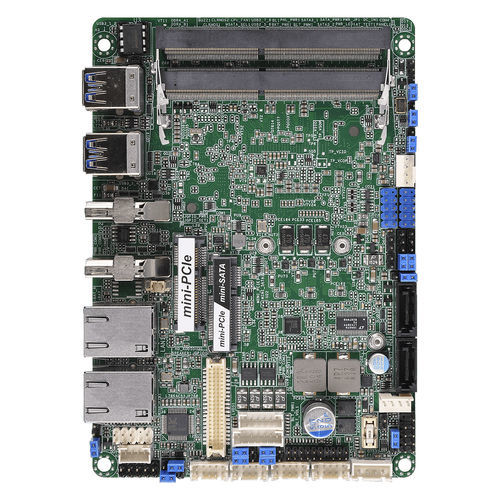

3.5" SBC SBC-331V

Intel® Skylake Processor6th generation Intel® Core™Intel® Core™ i3-6100U

Chipset - MCP BIOS - AMI SPI 128 Mbit Memory Socket - 2 x 260-pin SO-DIMM Graphics Controller - Intel® Gen9 Graphics DX 12 Max resolution up to 4096x2160@60Hz LVDS - Dual channel 24 bit up to 1920x1200@60Hz MultiDisplay - Triple Display Expansion Slot Audio Interface - Realtek ALC888S, High Definition Audio. Line-out,Mic-in Ethernet Controller/ Speed - SBC-331V LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps Connector - 2 x RJ-45 Rear I/O DisplayPort - 2 x DP1.2 Ethernet - 2 x 1 Gigabit LAN USB - 4 x USB 3.1 Gen2 Internal Connector USB - 4 x USB 2.0 (2x 2.54 pitch header) COM - 1 x COM (RS-232/422/485) 3 x COM (RS-232) GPIO - 4 x GPI, 4 x GPO TPM - TPM Header LVDS - 1 SATA PWR Output - 1 Storage mSATA - 1 x Half size with SATA3 and USB 2.0 colay with mini-PCIe SATA - 2 x SATA3 (6Gb/s) RAID - Intel® SATA RAID 0/1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12~36V (DC In) Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift Package - 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x AL PLATE 102.22*147.01mm (13G070252020AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) Bulk Package - 2 x SCREW FOR WIFI CARD (13G020305011AK)
