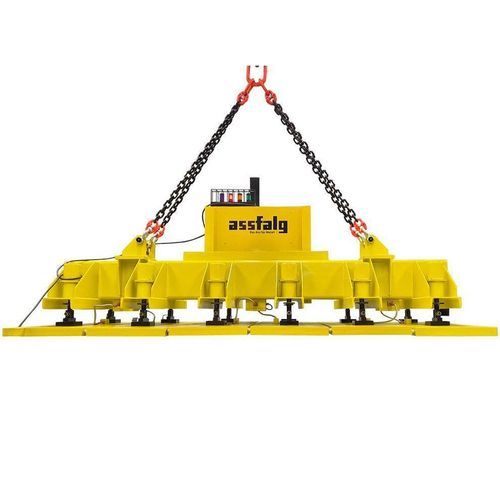

Electrically switched electro-permanent lifting magnet EPM-CO

for sheet metalhandling

The electropermanent magnetic beam EPM-CO is designed for laser cutting machines to enable safe, fast and precise handling of sheet metal and laser-cut parts. It combines high magnetic density with precise control to maximise productivity in production.

Application overview
The EPM-CO is developed for use on laser cutting machines (clearing cutting systems, lifting series parts and similar tasks) and is optimised for precise handling and positioning of flat workpieces and series parts.

Key features

• Electropermanent design: permanent magnet safety with electrical switching (impulse current) for magnetize/demagnetize without continuous heating.
• Low energy consumption (impulse activation) and high holding performance for industrial production.
• High magnetic density combined with precise control to optimise cycle times on cutting/clearing systems.
• Magnetic zone selection enabling handling of different sheet sizes and improved flexibility in material handling.

Professional advantages

• Optimal for clearing cutting systems and for lifting and handling series parts.
• Designed for efficient, repeatable and safe part handling in production environments.
• Good suitability for integration over laser cutting machines and in material flow processes.

Characteristics / technical specifications

• Model series: EPM-CO
• Model variant (page table): EPM-CO FBP3015-50
• Lifting load (Fh) – flat load SWL 3:1: 1,500 kg
• Field of application: for flat material
• Minimum material thickness (Max. load capacity from): 6 mm
• Minimum part size handled: 50 × 50 mm
• Weight (as listed): 2.85 kg
• Intended use: laser cutting machine clearing systems, lifting of series parts and precise handling of sheet and laser-cut parts
