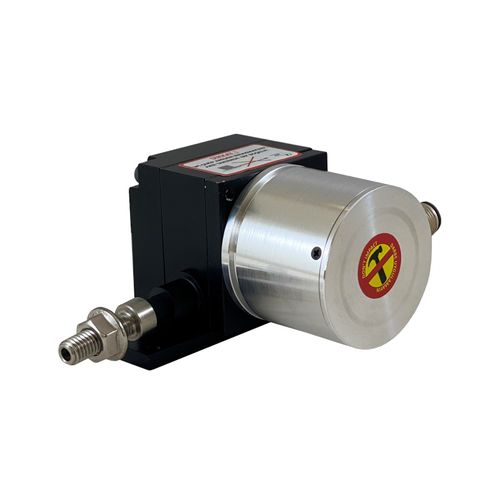

Draw-wire position sensor AWP 110 HR

magneticpotentiometerCANopen

Different stroke (measuring) lengths up to 1200 mm High resolution ±%0.25 FS linearity 2 m/s maxium speed Analog or CANopen output Programmable analog output Small structure IP67 protection class Magnetic measurement; high resolution; robust stainless steel wire; small aluminum body; resistant to shocks and vibrations General Features Thanks to the teachi-in feature, the minimum and maximum measurement limits can be adjusted on the sensor IP67 protection class 2 m/s maximum speed Shock/vibration resistant Robust aluminum housing and stainless steel measuring wire Compact design Applications Elevators Press machines Crane systems Wood processing machines Marble processing machines Storage positioning Dam protections Sluice gate control Air compressors Glass processing machines Lifting platforms Applications in medical technologies (operating table etc.) Forklifts Screw machines Paper machines Sewing machines Hydraulic machines Sheet metal machines Printing machines Horizontal control equipments Construction machines Industrial robots Injection machines X-Y axis displacement Liquid level measurements and position control
