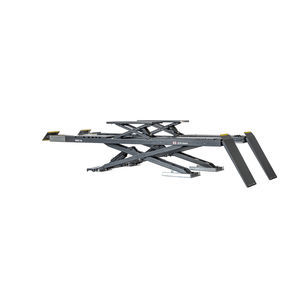

Scissor lift ATH-Cross Lift 50
5 tonelectro-hydraulicfor car

scissor lift
scissor lift
scissor lift
scissor lift
scissor lift
scissor lift
scissor lift
Add to favorites
Compare this product


Maximum load
5 ton
for car
Other characteristics
Lifting height

Min.: 0 mm (0 in)

Max.: 1,870 mm (73.622 in)

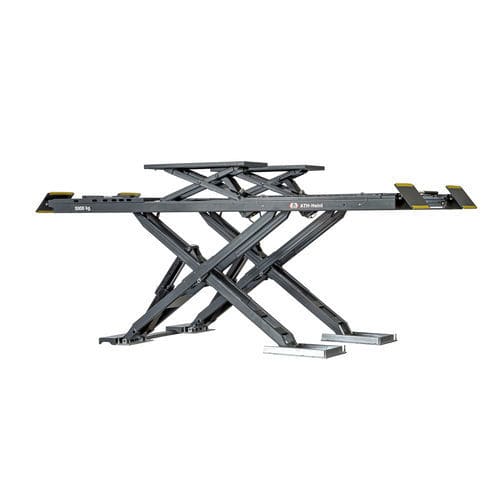

Platform-scissor lift ATH-Cross Lift 50 Platform-scissor lift for in-ground installation or surface mounting (with optional ramps), capacity 5000 kg, with integrated central lifting scissor Description Highest quality: High-precision manufacturing by laser cutting and robotic welding Long-lasting technology: Robust and less sensitive hydraulic drive, almost maintenance-free Flexible installation: Suitable for in-ground installation or surface mounting with optional kit (1000003.01); for passenger cars and vehicles with long wheelbase; platform length 5 m High functionality: Perfect lift for wheel alignment; with recess for turn plates in the front, already installed mechanically lockable sliding plates in the back and integrated central lifting scissor (capacity central lifting scissor: 4000kg, lifting height: 450 mm) Great variability: Serial with rails for optional rolling jack (ATH AF2500P), stabilizing bars for the ramps, incl. metal cover and on/off switch for optional 24V LED lighting kit (629020) Comfortable working: Only drive-on and repair, no lifting arms Precise lifting and lowering: The hydraulic sequence control (master and slave cylinders) ensures an even lifting and lowering of the scissors; the integrated light barrier permanently controls the synchronization of the lift Maximum security: Pneumatic unlocking of notches, emergency lowering system for lowering in case of power failure, CE stop and signal sound Simple working: Lifting and lowering with push button control Modern design: Powder-coated lift in attractive anthracite gray Corrosion protection: Partial galvanizing, double powder coating and platform protection of special polymer
