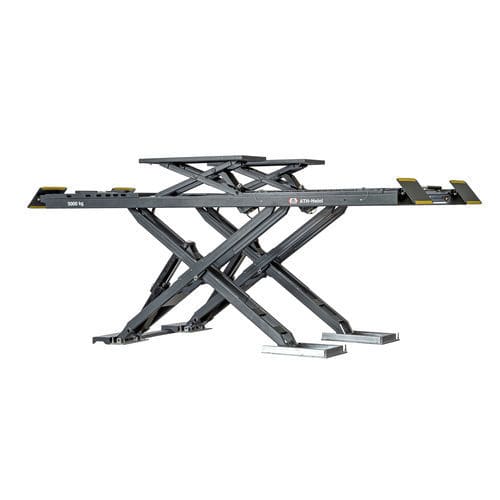

Scissors post lift ATH-Cross Lift 40 UGA4 tonelectro-hydraulic400 V
Add to favorites
Compare this product
Characteristics
- Type
- scissors
- Maximum load
- 4 ton
- Operation
- electro-hydraulic
- Voltage
- 400 V
- Applications
- for car
- Other characteristics
- platform, with auxiliary lift
- Lifting height
Max.: 2,160 mm
(85.039 in)Min.: 0 mm
(0 in)- Lifting time
70 s
- Motor power
3.5 kW
(4.76 hp)
Description
Color - anthracite-grey / black
Rated load capacity - 4 t
Lifting height max. - 2.160 mm
Total platform length - 4230 mm
Total platform width - 600 mm
Driving power - 3,5 kW
Lifting/Lowering time - ca. 70 s
Power supply voltage - 3x 400V / C16A
Concrete strength - min. C20/25 5.500 x 3.000 x 200 mm
Installation depth - 295 mm
