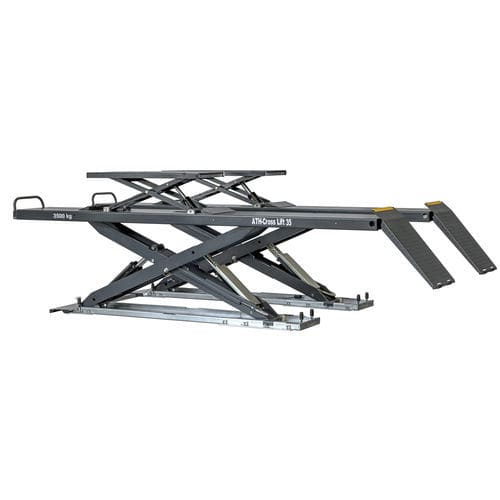

Scissors post lift ATH-Cross Lift 35 OG
3.5 tonelectro-hydraulic400 V

scissors post lift
scissors post lift
scissors post lift
scissors post lift
scissors post lift
scissors post lift
Add to favorites
Compare this product


Characteristics

Type
scissors
Maximum load
3.5 ton
Operation
electro-hydraulic
Voltage
400 V
Applications
for car
Other characteristics
platform, with auxiliary lift
Lifting height

Max.: 1,830 mm
(72.047 in)

Min.: 0 mm
(0 in)

Lifting time

60 s

Motor power

2.6 kW
(3.54 hp)

Description

High quality and robust scissor lift with hydraulic drive, almost maintenance-free Powerful hydraulic unit with load-dependent lowering speed controller With wheel-free jack (load capacity: 3.5 t, lifting height: 430 mm), optional wheel alignment kit with cut outs for swivel plates at the front and mechanically lockable swing plates at the rear (incl. at ATH-Cross Lift 35 OGA / UGA) Pneumatic unlocking of the safety locks, CE-Stop and lowering acoustic signal Emergency lowering system for lowering in the event of a power failure, safety synchronization monitoring via light barrier Ideally suited for inspection, repair and test stations for driver assistance systems, optionally for wheel alignment
