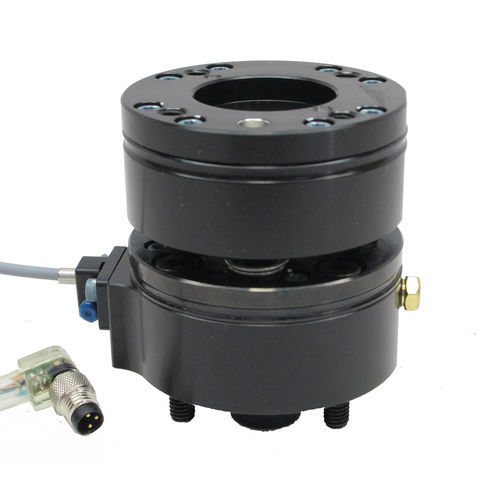

Air-operated robotic compliance unit / collision sensor U1-050

Product overview

• Universal compliance: Patented mechanism provides simultaneous X‑Y lateral, X‑Y‑Z rotation and Z compression compliance to overcome significant misalignment between tool and workpiece.
• Pneumatic reset: Pneumatically actuated piston returns the unit to a repeatable center position; springs maintain minimum preload.
• Adjustable stiffness: Compliance stiffness is tuned by varying pneumatic pressure to the reset piston for application‑specific behavior.
• Integrated sensing: Optional compliance sensor monitors internal piston proximity (PNP or NPN).
• ISO mounting pattern: Direct attachment to many robots without adapters.
• Flexible configurations: Options include PNP/NPN sensor, rubber boot for environment protection, and custom tool‑plate bolt patterns.

Specifications
Compliance motion: Universal
Ambient temperature range: -28.9 °C to 65.6 °C
Max payload: 4.99 kg
Max pressure for stiffness tuning: 2.1 bar
Nominal operating pressure: 5.5 bar
Positional repeatability X‑Y: ±0.15 mm
Rated life: 1,000,000 cycles
Sensing option: PNP or NPN
Weight: 0.635 kg
X/Y axis rotation: ±3°
X/Y lateral: 2.8 mm
X/Y max static moment: 2.3 Nm
Z axis rotation: ±8°
Z compression: 6.1 mm
Z max static moment: 1.1 Nm


Notes
Optional compliance sensor available; stiffness adjusted via pneumatic pressure to the reset piston. ISO mounting pattern allows direct robot attachment without adapters.


Technical characteristics

• Compliance motion: Universal
• Ambient temperature range: -28.9 °C to 65.6 °C
• Max payload: 4.99 kg
• Max pressure for stiffness tuning: 2.1 bar
• Nominal operating pressure: 5.5 bar
• Positional repeatability X‑Y: ±0.15 mm
• Rated life: 1,000,000 cycles
• Sensing option: PNP or NPN
• Weight: 0.635 kg
• X/Y axis rotation: ±3°
• X/Y lateral: 2.8 mm
• X/Y max static moment: 2.3 Nm
• Z axis rotation: ±8°
• Z compression: 6.1 mm
• Z max static moment: 1.1 Nm
