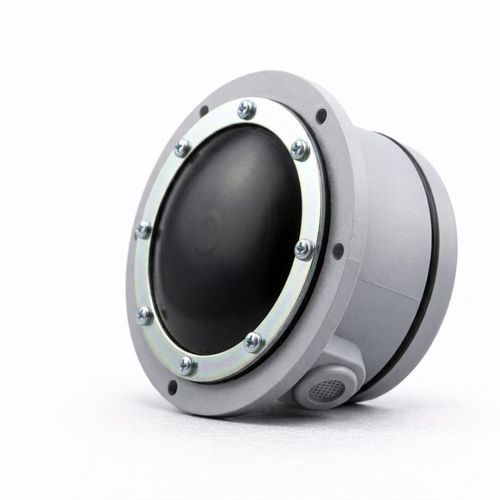

Membrane level switch SOLIBA M

for bulk materialsfor powdersfor silo

Presentation
The SOLIBA M is an economical membrane level switch by ATMI for detecting high, low or intermediate levels in silos, hoppers and other storage containers. It is suitable for powders and free-flowing granules and can also indicate feed conditions or blockages in conveyors and screw feeders.

Applications and materials
Recommended for low-viscosity bulk materials such as dust, flour, cereals, sand and plastic granules. Designed for installation on vertical silo walls and adaptable to common storage and conveying configurations.

Operation
The sensing is based on pressure applied by the bulk material against a membrane. When material presses the membrane, the membrane deflects and changes the state of an internal switch, sending an electrical signal to stop filling or trigger an automation. Sensitivity can be adjusted using the spring-and-nut regulation system on related models to suit material characteristics.

Key points

• Detection principle: membrane pressure
• Functions: high/low level detection, flow monitoring, blockage detection
• Membrane materials: NBR or Viton (depending on model)
• Compact mechanical design for simple, low-cost installation

Technical specifications

• Operation: by pressure on membrane
• Use: stop filling of silos / level control
• Electrical: 250 VAC / VDC 50/60 Hz
• Breaking capacity: 16 A
• Operating temperature: -10 °C ... +60 °C
• Ingress protection: IP 44
• Enclosure: ABS
• Weight (without cable): 200 g
• Dimensions: Height 50 mm — Diameter Ø 90 mm
• Bulk density operating range: 0.3 ... 2.5 t/m3 (recommended approx. 0.3 to 1.0 t/m3)
