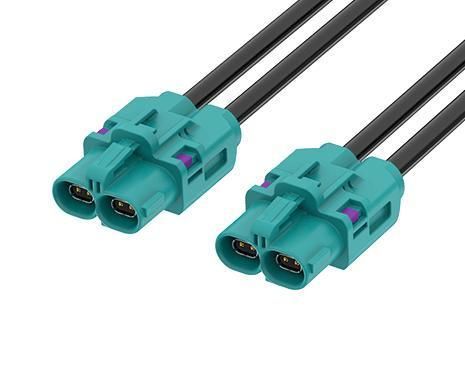

Data transmission cable assembly MTP-1J1J-100Z02

coaxialstraightfor automobiles

HSD Jack to Jack Cable, 1x1, Straight, L=100 CM ATTEND’s HSD solution is a high-performance, fully shielded interconnect system for high-speed data. It supports LVDS, Ethernet, and USB protocols, providing excellent protection against crosstalk and interference. Featuring 100 Ω fully shielded connectivity, it can be paired with shielded twisted quad cables for robust and reliable signal transmission. Key Features & Specifications: • High-performance, fully shielded cable assembly for high-speed data transmission • Supports LVDS, Ethernet, and USB communication standards • Provides excellent EMI protection and low crosstalk performance • Impedance: 100 Ω • Data Rate: Up to 8 Gbps • Frequency Range: DC – 6 GHz • Cable Type: Coaxial #26 AWG × 4C + AB • Outer Diameter: Approx. 4.6 mm • Cable Length: 100 cm • Connector Type: HSD Jack to HSD Jack (Straight, Female–Female) • Mating Cycles: ≥ 25 • Operating Temperature Range: -40 °C to +105 °C • Compliance: ISO 20860-1/-2, SAE/USCAR-2, RoHS • Designed for automotive and industrial high-speed data applications
