HS-MTP electrical connector 232D-P0X00

dataaudio/videohybrid

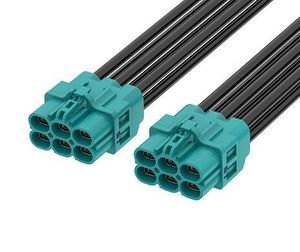

HS-MTP Plug, 2x3 Port, Right Angle ATTEND’s HS-MTP (High-Speed Modular Twisted-Pair) connector and cable assembly system delivers a high-speed, automotive-grade differential solution. Supporting frequencies up to 20 GHz, it accommodates ADAS, cameras, radar/lidar, and 4K or higher-resolution camera systems. Its modular design is compatible with shielded/unshielded twisted pair and high-performance cables, ensuring signal integrity, EMI protection, and future-proof connectivity. Compliant with USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards, it provides robust, space-saving, and reliable performance for current and next-generation automotive and industrial applications. - Supports High-speed differential transmission, optimized for automotive Ethernet (1000BASE-T1, 2.5G/5G/10GBASE-T1). - Meets USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards. - Robust plastic housings provide high resistance to harsh automotive environments. - Multiple mechanical codings prevent mismating and enable easy identification. - Provides superior EMI/RFI protection in electrically noisy environments. - Supports STP/UTP cables for high-speed differential signals. - Operating Temperature Range: −40°C to +105°C Applications: - ADAS System - 4K and Higher Camera Systems - Autonomous Driving - High-Resolution Displays - Rear Seat Entertainment Code Options: - A: Jet Black, Radio without phantom supply - B: Cream, Radio with phantom supply - C: Signal Blue, GPS / Navigation - D: Claret Violet, GSM - E: Leaf Green, TV / SDARS Terrestrial - F: Nut Brown, TV / SDARS Terrestrial / Camera - G: Blue Gray, Remote Keyless Entry - H: Heather Violet, GPS / Navigation - J: Beige, Remote, Bluetooth / VPM - K: Curry, Diversity radio, SDARS Satellite - L: Carmine Red, Undefined, VPM - M: Pastel Orange, Undefined, RKE / TPMS - O: Light Green, Undefined, DSRC / VPM - Z: Water Blue, Universal (Neutral) Code Specifications: Electrical: - Current Rating: 1.5A per pin - Voltage Rating: 60V AC/DC - Contact Resistance: 10mΩ - Insulation Resistance: 100mΩ - Dielectric Withstanding Voltage: 250VAC - Impedance: 100mΩ - Frequency: 10 GHz Mechanical: - Mating Cycles: 25 cycles Environmental: - Operating temperature range: -40°C ~ +105°C - Storage temperature range: -40°C ~ +105°C
