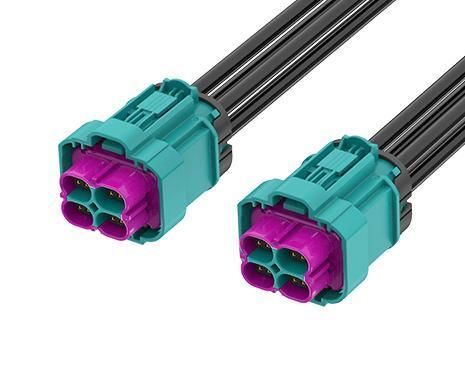

Coaxial cable assembly MTP-1J1J-100Z03W

data transmissionHS-MTPstraight

HS-MTP Jack(2x2) to Jack(2x2) cable, IP67, L=100 CM, Z CODE ATTEND’s HS-MTP (High-Speed Modular Twisted-Pair) connector and cable assembly system delivers a high-speed, automotive-grade differential solution. Supporting frequencies up to 20 GHz, it accommodates ADAS, cameras, radar/lidar, and 4K or higher-resolution camera systems. Its modular design is compatible with shielded/unshielded twisted pair and high-performance cables, ensuring signal integrity, EMI protection, and future-proof connectivity. Compliant with USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards, it provides robust, space-saving, and reliable performance for current and next-generation automotive and industrial applications. Main Features: - Supports High-speed differential transmission, optimized for automotive Ethernet (1000BASE-T1, 2.5G/5G/10GBASE-T1). - Meets USCAR-2, USCAR-17, Open Alliance TC9 and IEEE 802.3ch standards. - Robust plastic housings provide high resistance to harsh automotive environments. - Multiple mechanical codings prevent mismating and enable easy identification. - Provides superior EMI/RFI protection in electrically noisy environments. - Supports STP/UTP cables for high-speed differential signals. - Operating Temperature Range: −40°C to +105°C Applications: - ADAS System - 4K and Higher Camera Systems - Autonomous Driving - High-Resolution Displays - Rear Seat Entertainment Specification: MECHANICAL - Style: MTP (2x2) to MTP (2x2) - 1st Connector: HS-MTP Jack (2x2) - 1st Contact Gender: Female (Waterproof) - 2nd Connector: HS-MTP Jack (2x2) - 2nd Contact Gender: Female (Waterproof) - Cable Color: Black - Cable OD: Approx. 3.8 mm - Cable Type: Coaxial, 26 AWG × 2C + AB - Compliance: ISO 20860-1/2, SAE/USCAR-2, RoHS - Length: 100 cm - Mating Cycles: ≥ 25 ELECTRICAL - Coding: HS-MTP Jack (2x2) (Z-Code) - Data Rate: Up to 8 Gbps - Frequency Range: DC to 6 GHz - Impedance: 100 Ω ENVIRONMENTAL - Operating Temperature Range: -40°C to +105°C Characteristics / Technical Specifications: - Product type: HS-MTP Jack(2x2) to Jack(2x2) Cable - Length: 100 cm - IP rating: IP67 - Coding: Z - Connector gender: Female (Waterproof) both ends - Cable OD: Approx. 3.8 mm - Cable type: Coaxial, 26 AWG × 2C + AB - Compliance: ISO 20860-1/2, SAE/USCAR-2, RoHS - Mating cycles: ≥ 25 - Data rate: Up to 8 Gbps - Frequency range: DC to 6 GHz - Impedance: 100 Ω - Operating temperature: -40°C to +105°C
